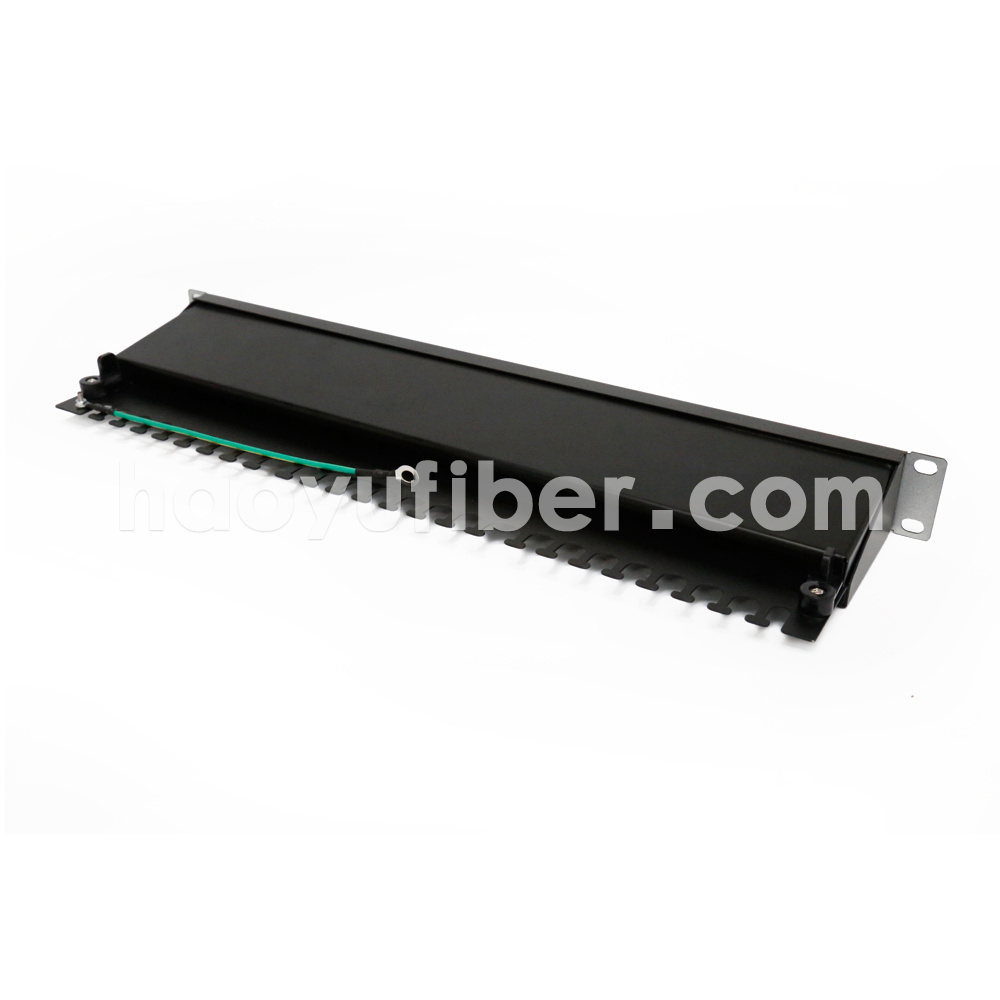

1U 19 Inch 24 Port CAT6A STP Shielded All-in-One Network Patch Panel
CAT6A shielded copper patch panel provided by Haoyu for end-user lines or trunk lines and the ability to deploy and connect them.Distribution frame is the most important component in the management subsystem.
Features
1.Standard 19-inch rack type, standard 1U height;
2.Comply with FCC/CE/ RoHS /UL;
3.Meet the ANSI/TIA 568C.2 transmission standard and YD/T 926.1 specification, in line with T568A and T568B sequence;
4.100% Fluke test.
Applications
Shenzhen Haoyu Telecommunication Co., Ltd. (Haoyu) provides 1U 24 CAT6A super six (STP) shielded integrated copper patch panel 19 inch used in LAN equipment, data communication, integrated wiring is mainly used in the back end of the front-end information point management of modular equipment.After the front-end information point cable enters the equipment room, it first enters the distribution frame, and then connects the distribution frame and the switch with jumper wires.Its application is sturdy and easy to install, reducing installation and operating costs.
|
1U 19 Inch 24 Port CAT6A STP Shielded All-in-One Network Patch Panel |
|
|
Rated current |
1.5A |
|
Contact resistance |
Max 100mΩ(500VDC) |
|
Insulation resistance |
Min 1000MΩ |
|
Compressive strength |
750VAC(60Hz/min) |
|
Storage temperature |
-40℃ to +70℃ |
|
Operation temperature |
-20℃ to +60℃ |
|
IDC Shell material |
PBT |
|
Panel frame material |
SPCC,Black or industrial gray, electrostatic powder coating |
|
Plug service life |
≥750Times |
|
IDC life |
≥200Times |
|
Contact material |
Phosphor bronze，The thickness of the0.3mm |
|
IDC Contact material |
Phosphor bronze，Surface of nickel plating |
|
Number of rules |
23-24AWG |
