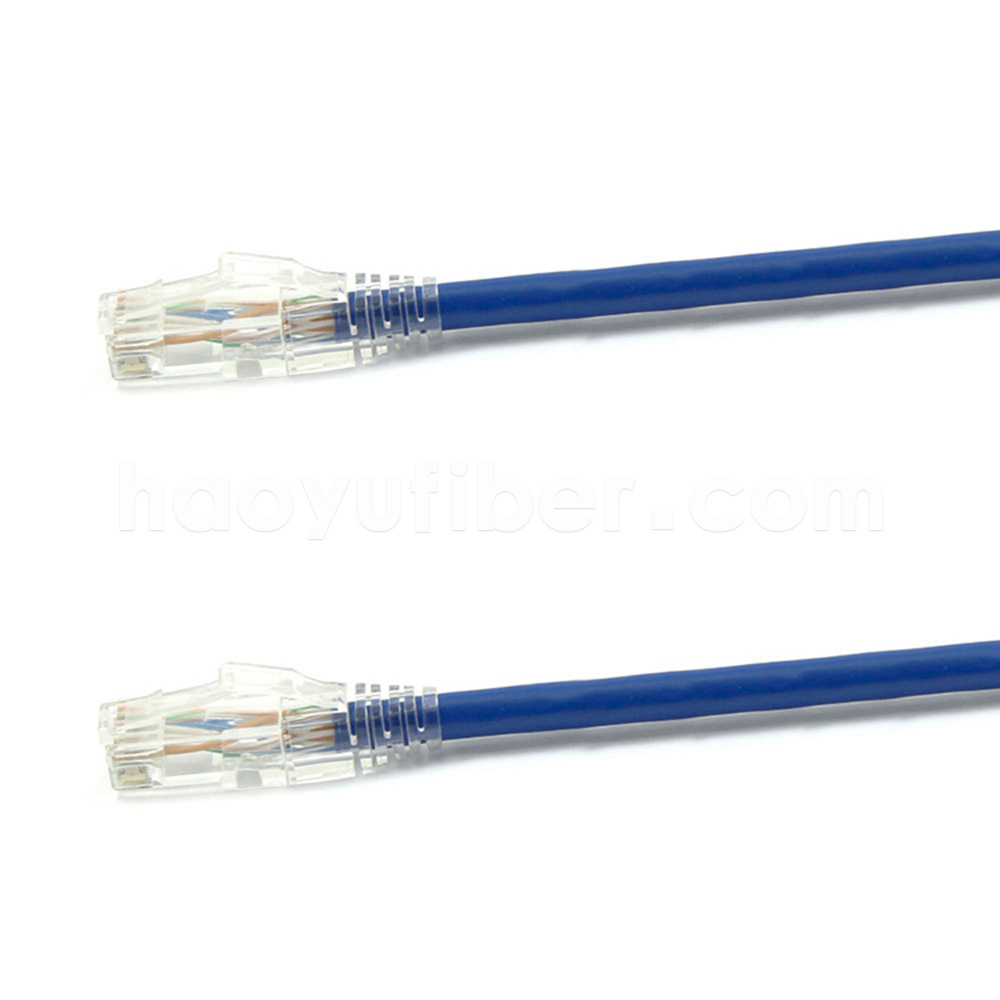

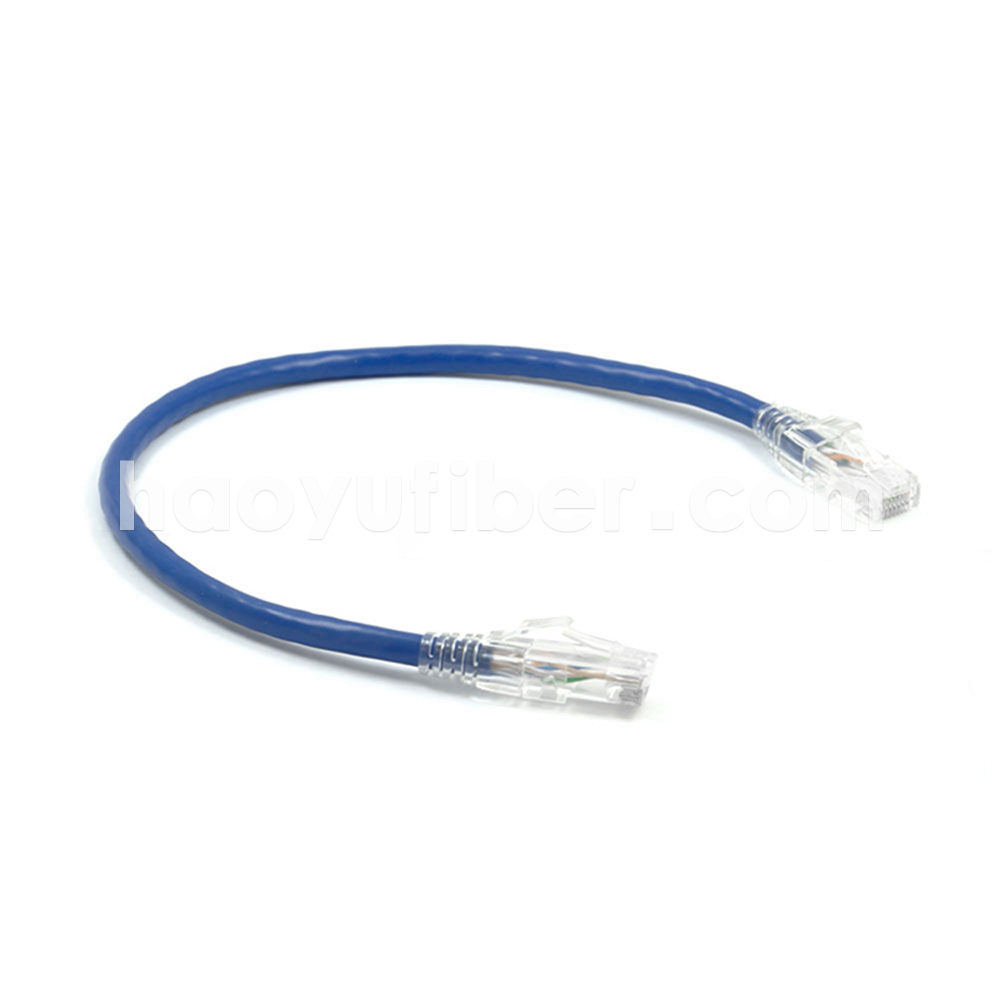

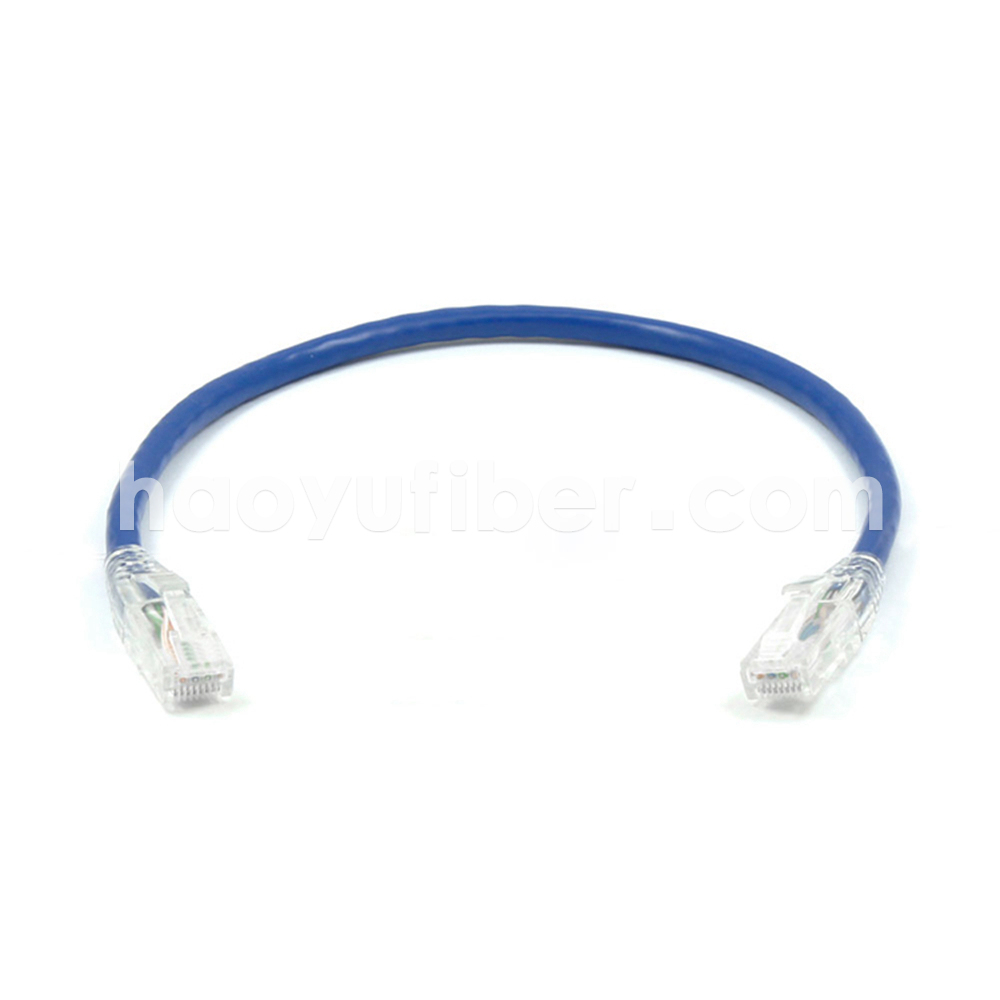

CAT5E Unshielded UTP Network Patch Cord 24AGW LSZH
24AGW CAT5E UTP network patch cord LSZH outer sheath is UTP cable structure, plug and play, convenient and flexible, and the finished jumper test in strict accordance with ANSI/TIA/EIA-568C.2, so as to ensure the reliability of the transmission system.
Features
1. Support T568A(ISDN) and T568B (ALT) pin configuration;

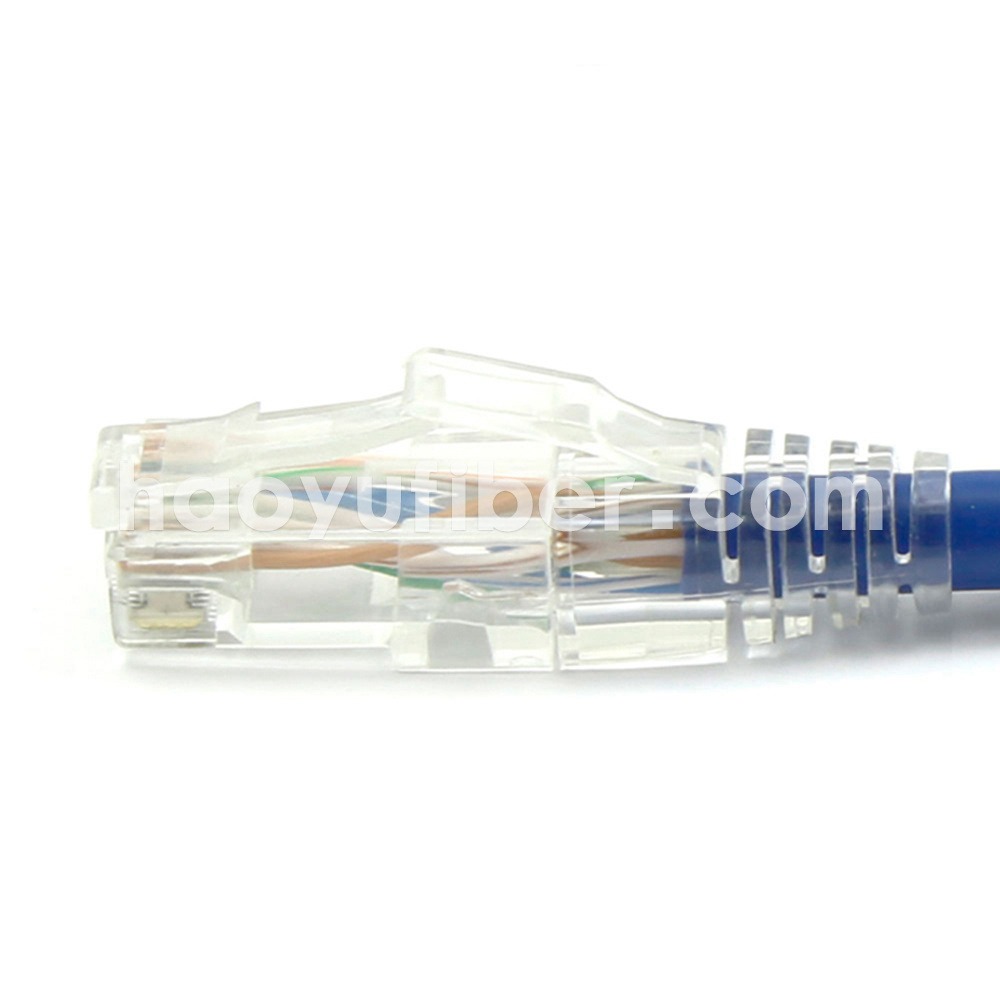

2. RJ45 crystal oboe surface gold plated, to ensure very good contact and signal transmission performance;
3. Made by injection molding process, the wire is sealed and does not oxidize;
4. 100% factory test, can ensure the performance;
5. Meet the international standard ANSI/TIA/EIA-568B, IEC61156-5 5E and EN 50288-2-1 and TIA-568-C.2 and domestic standard YD/T1019-2013.
Applications
LSZH outer sheath 24AGW CAT5E ultra five type unshielded (UTP) network patch cord is widely used in data center, network cabinet, office connection network transmission equipment, such as POE switch, computer, etc.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT5E Unshielded UTP Network Patch Cord 24AGW LSZH |
|
|
Connector Type |
RJ-45 |
|
Conductor |
24AWG,Oxygen-free Pure Copper Wire |
|
Electrical Characteristics |
1. Maximum Conductor Resistance@20°C: 66Ω/km; 2. Maximum Unbalance Resistance@20°C: 2.5%; 3. Mutual Capacitance: 5.6nF/100m; 4. Characteristic Impedance: 100±15%Ω(1 to 100MHZ); 5. Band Width: 100MHz.
|
|
Outer Skin Material Options |
PVC, LSZH |
|
Operating Temperature |
- 20°C to + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 Requirements For Super Category 5 |
|
Copper Cable Outer Diameter |
5.4 ± 0.3mm |
