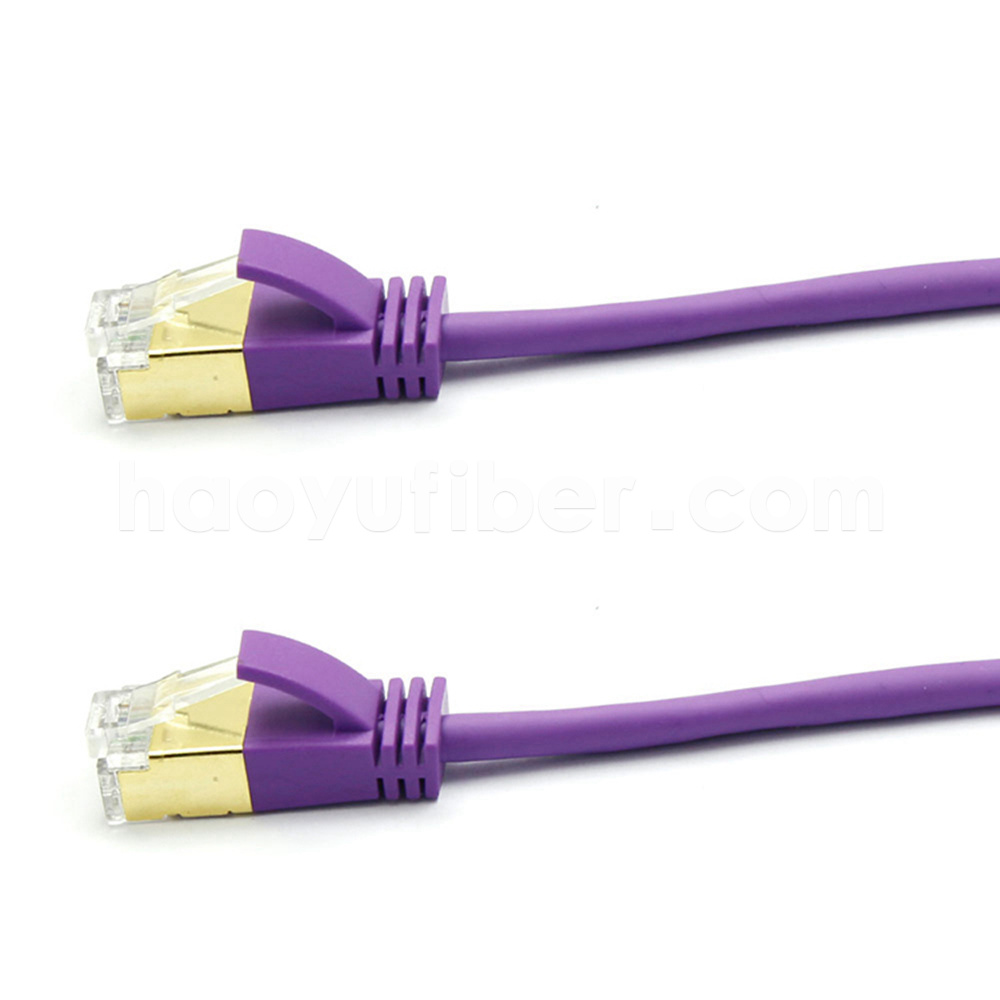

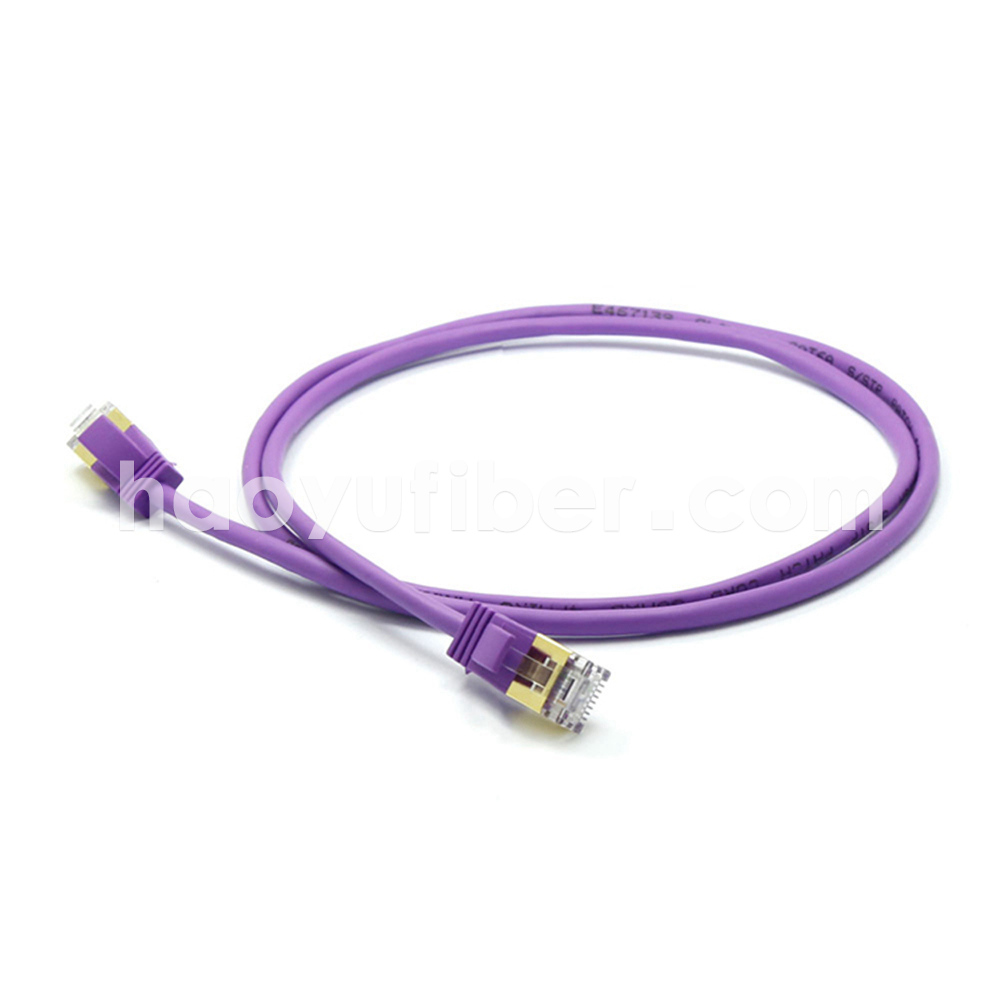

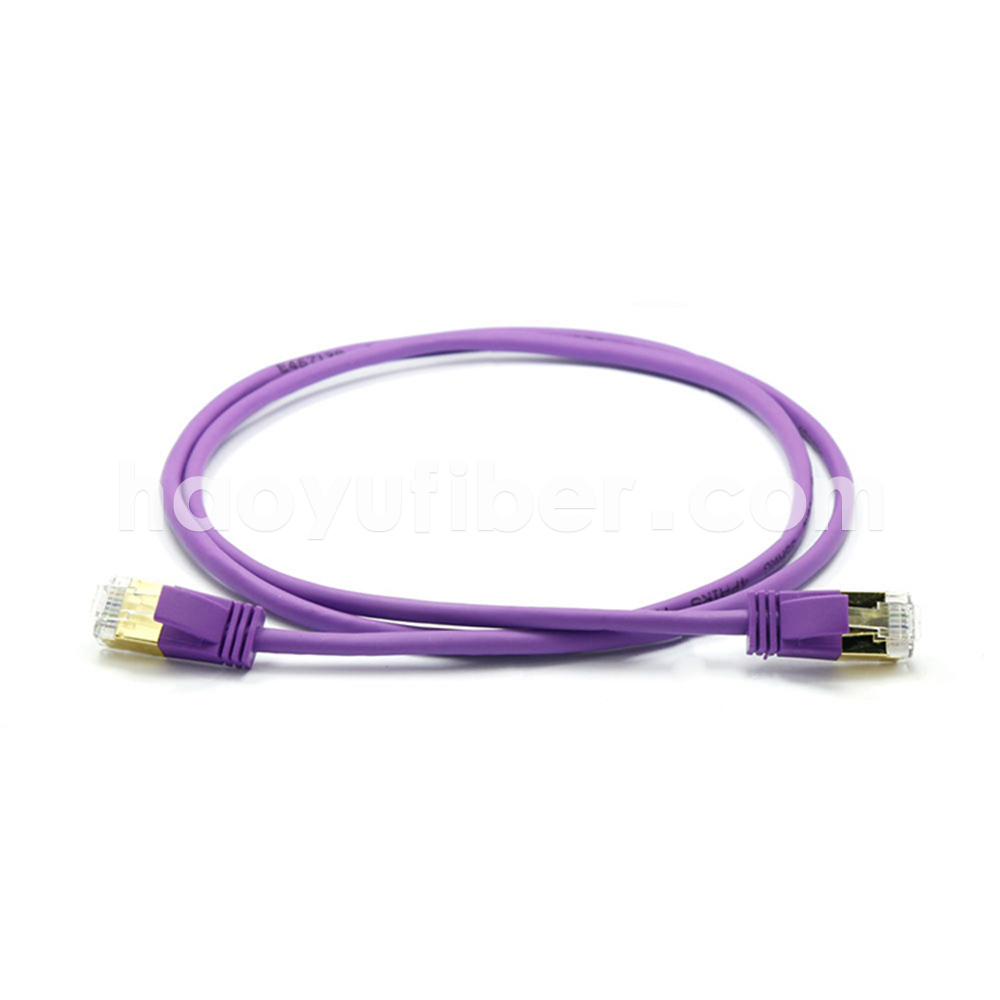

CAT6 Shielded FTP Network Patch Cord 26AWG PVC/LSZH
ADTEK 1M CAT6 FTP network patch cord 36AWG purple PVC/LSZH is UTP cable structure, plug and play, convenient and flexible, and the final product jumper test in strict accordance with ANSI/TIA/EIA-568C.2, so as to ensure the reliability of the transmission.
Features
1. Support T568A(ISDN) and T568B (ALT) pin configuration;
2. RJ45 crystal oboe surface strolling gold, ensure very good contact and signal transmission performance;
3. Made by injection molding process, the wire is sealed and does not oxidize;
4. 100% factory test, can ensure the performance;
5. Meet the international standards ANSI/TIA/EIA-568B, IEC61156-5 5E and EN50288-2-1 and TIA-568-C.2 and domestic standards YD/T1019-2013.
Applications
The 1M CAT6 FTP network patch cord 36AWG purple PVC/LSZH is widely used in data center, network cabinet, office connection network transmission equipment, such as POE switch, computer, etc.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT6 Shielded FTP Network Patch Cord 26AWG PVC/LSZH |
|
|
Connector Type |
RJ-45 |
|
Conductor |
26AWG,Oxygen-free pure copper wire |
|
Electrical Characteristics |
1. Maximum conductor resistance@20°C：66Ω/km； 2. Maximum unbalance resistance@20°C：2.5%； 3. Mutual capacitance：5.6nF/100m； 4. The characteristic impedance：100±15%Ω（1 到 100MHZ）； 5. The band width：100MHz.
|
|
Outer Skin Material Options |
PVC、LSZH |
|
Operating Temperature |
- 20°C 至 + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 The requirements for the super five categories |
|
Copper Cable Outer Diameter |
5.8 ± 0.3mm |
