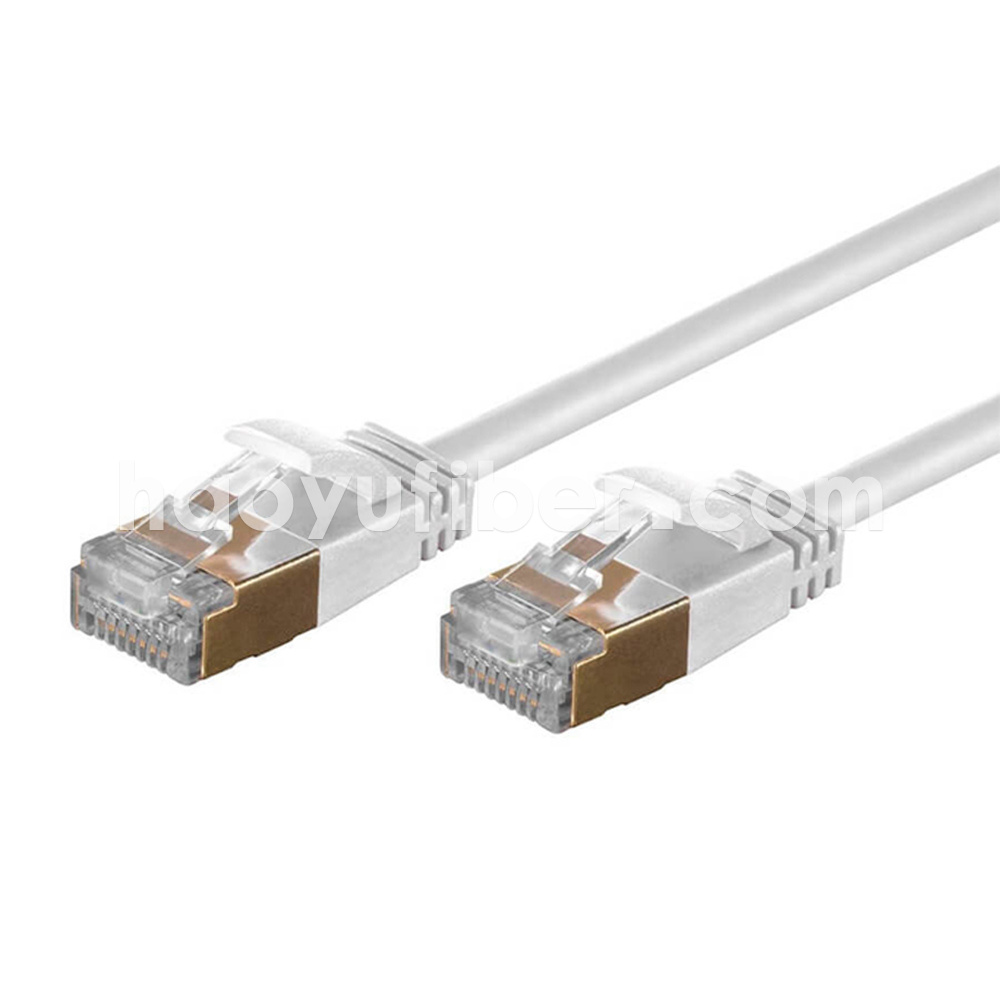

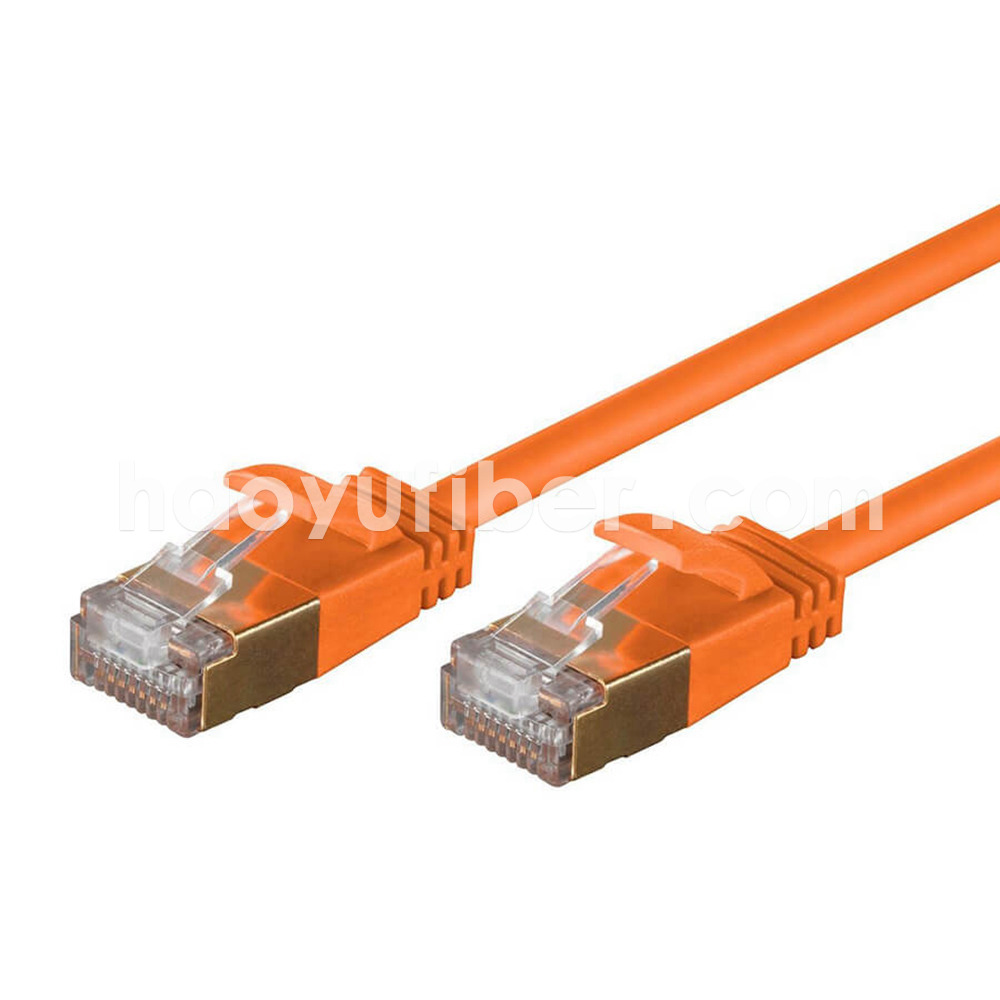

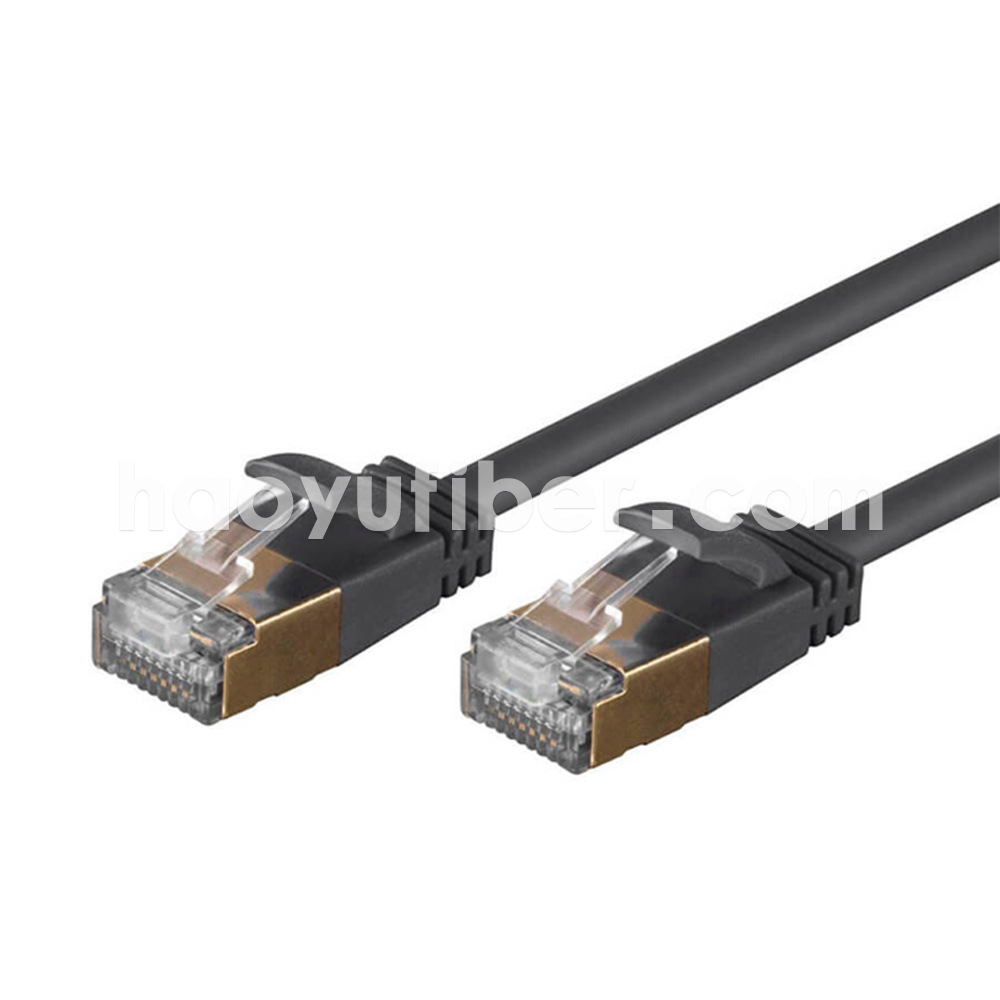

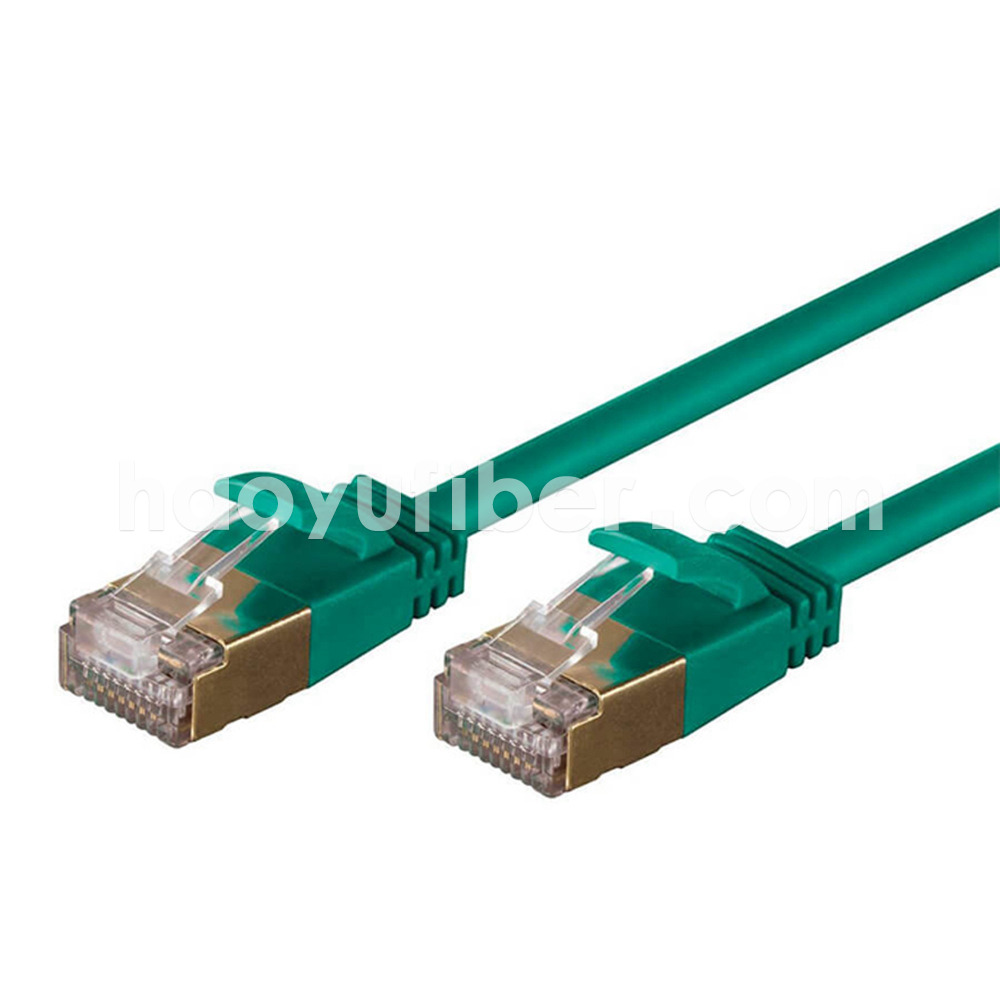

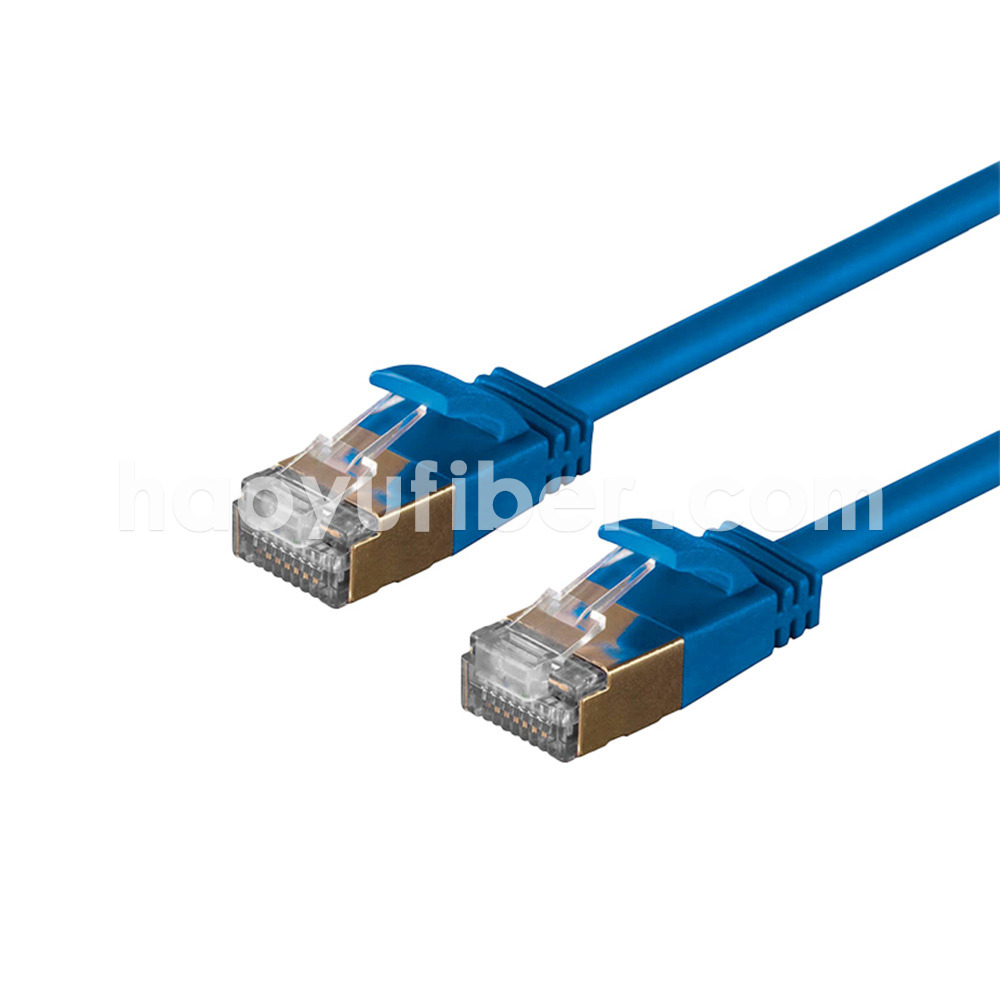

CAT7 ULTRA THIN PATCH CABLE
CAT7 FFTP ultraslim Netzwerk Patch cabel made by 36AWG(7/0.06) bare copper twisted pair wires, and 50u’’ gold plated shielded RJ45 connectors at each end of the cable. Shielded with AL foil and wrapped with soft LSZH jacket, which makes this cable more flexible than the common PVC jacket Cat 7 Netzwerk kabel. Used for connecting cable modem, DSL modem, router, hub, patch panel, or other network-enabled device. Compliant with RoHS, REACH and UL.
Features
Bandwidth:600MHz
OD:4.0mm
Conductor:36AWG
Appravals:RoHS&REACH
Connector: 50U" gold plated RJ45 connector
transmission speed:10Gbps 800Mhz
Color: black, white, gray, blue, green, yellow, customized
|
Category |
7 |
|
Bandwidth, MHz |
600 |
|
Type of conductors |
Multi strand Copper wire |
|
Diameter of conductors, AWG |
36 AWG (7х0.06) |
|
Insulation material |
Polyethylene foam (PE foam) |
|
Outer jacket material |
High elastic PVC |
|
Connection style |
Shielded |
|
Outer jacket diameter, mm |
4.0mm |
|
Protection level |
Multiple colors available |
|
Test standard |
100% pass TIA CTA7 Channel |
|
Temperature range |
Storage from -20 to +60ºС. Installation from 0 to +50°C. Operation from -20 to +60ºC. |
|
Individual packing |
Individual - Plastic bag |
|
Layout diagram |
T568B on both ends |
|
Connector type |
2xRJ45/8P8C |
|
Contact plating |
Gold, 50 micro-inches |
|
Assembly process |
Mortise pressing, soldering, injection molding |
|
Cable type |
F/FTP |
|
Screen construction |
Internal screen: polyester aluminum foil with 100% coating, individual for each pair. The general screen: polyester aluminum foil with 100% coating |
|
Number of pairs |
4 |
