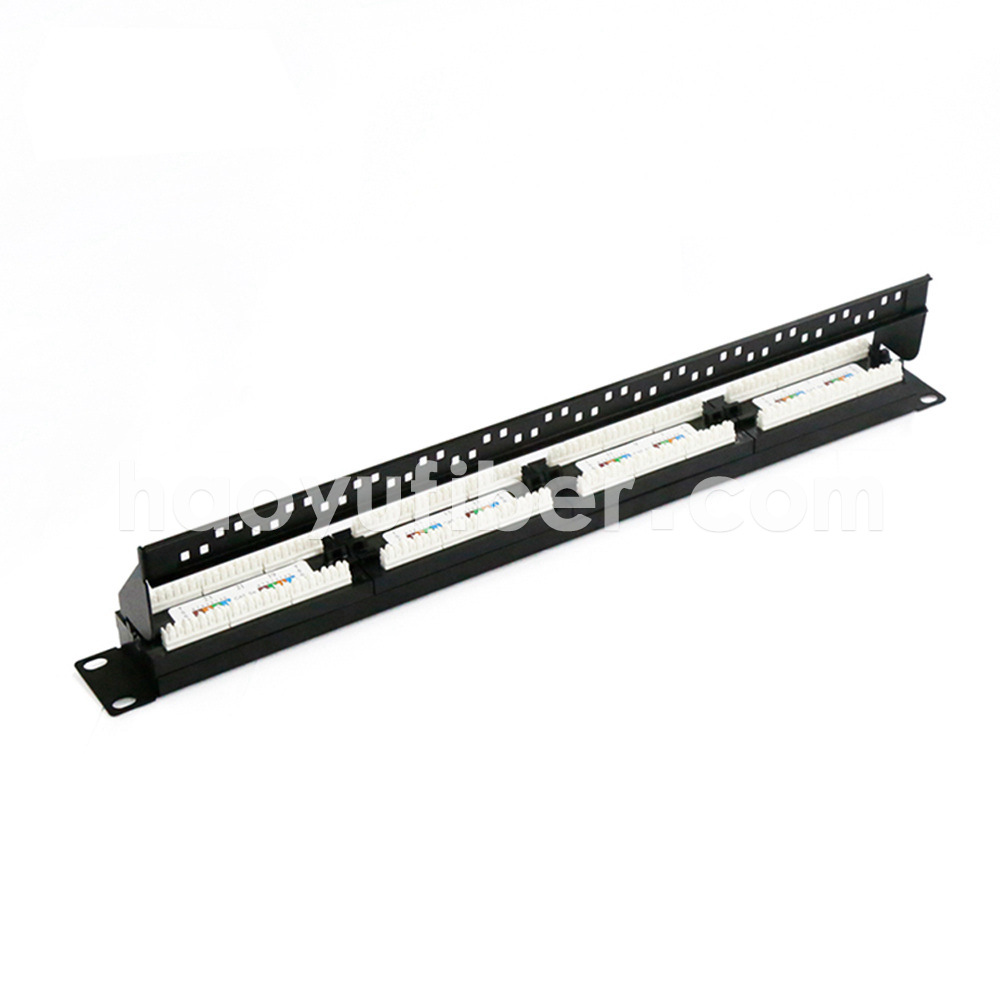

1U 24 Port CAT5E Unshielded UTP Network Patch Panel 110 Cologne Terminals 4 Section
CAT5E unshielded 110 copper patch panel provided by Haoyu is used for LAN equipment between, data communication, integrated wiring (mainly for the back end of the front-end information point management of modular equipment.
Features
1.Standard 19-inch rack type, standard 1U height;
2.Comply with FCC/CE/ RoHS /UL;
3.Transmission performance meets ANSI/TIA 568C.2, ISO/IEC11801, YD/T926, EN50173;
4.100% Fluke test.
Applications
CAT5E non-shielded 110 copper patch panel provided by Shenzhen Haoyu Telecommunication Co., Ltd. (Haoyu) is used in LAN equipment, data communication integrated wiring, mainly used in the back end of the front-end information point management of modular equipment management.
|
1U 24 Port CAT5E Unshielded UTP Network Patch Panel 110 Cologne Terminals 4 Section |
|
|
Rated current |
1.5A |
|
Contact resistance |
Max 100mΩ(500VDC) |
|
Insulation resistance |
Min 1000MΩ |
|
Compressive strength |
750VAC(60Hz/min) |
|
Storage temperature |
-40°C to +70°C |
|
Operating temperature |
-20°C to +60°C |
|
IDC Shell material |
PBT |
|
Panel frame material |
SPCC, Black or industrial gray, electrostatic powder coating |
|
Plug service life |
≥750 Times |
|
IDC life |
≥200 Times |
|
Contact material |
Phosphor bronze, The thickness of the 0.3mm |
|
IDC Contact material |
Phosphor bronze, Surface of nickel plating |
|
Number of rules |
23-24AWG |
