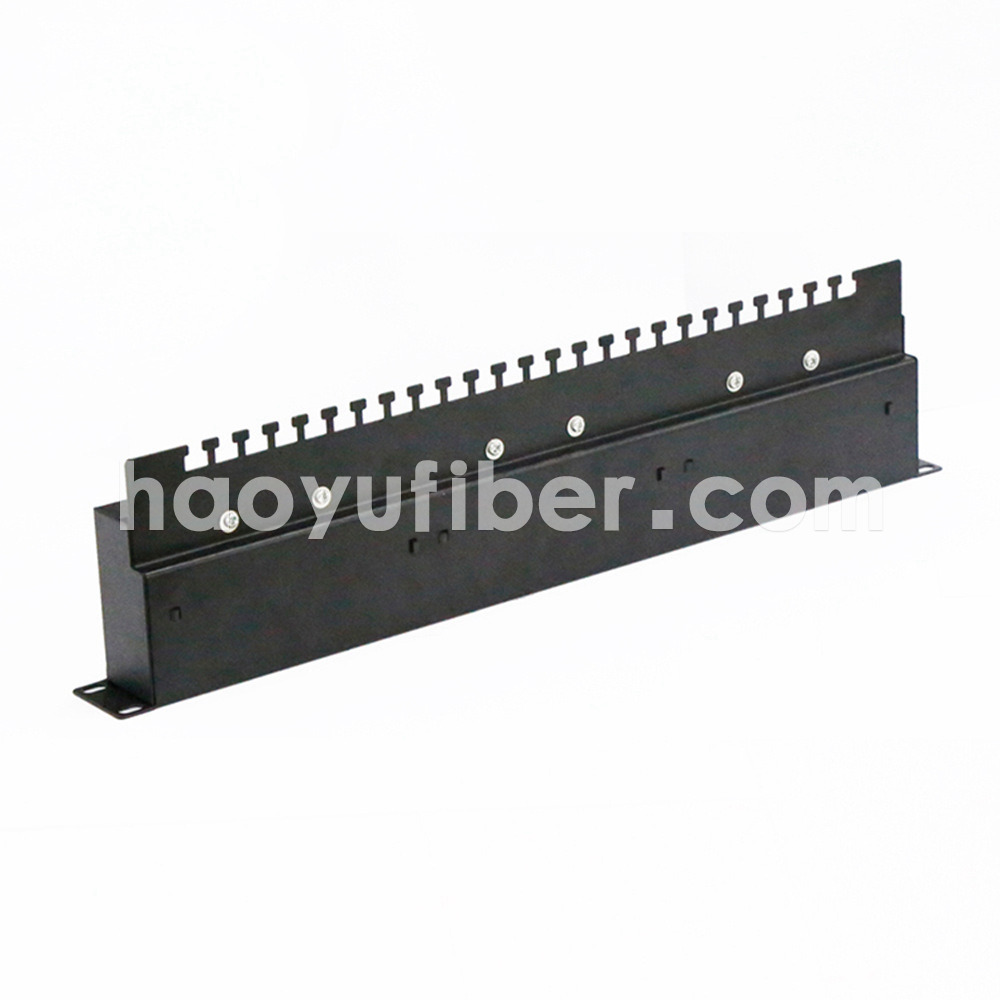

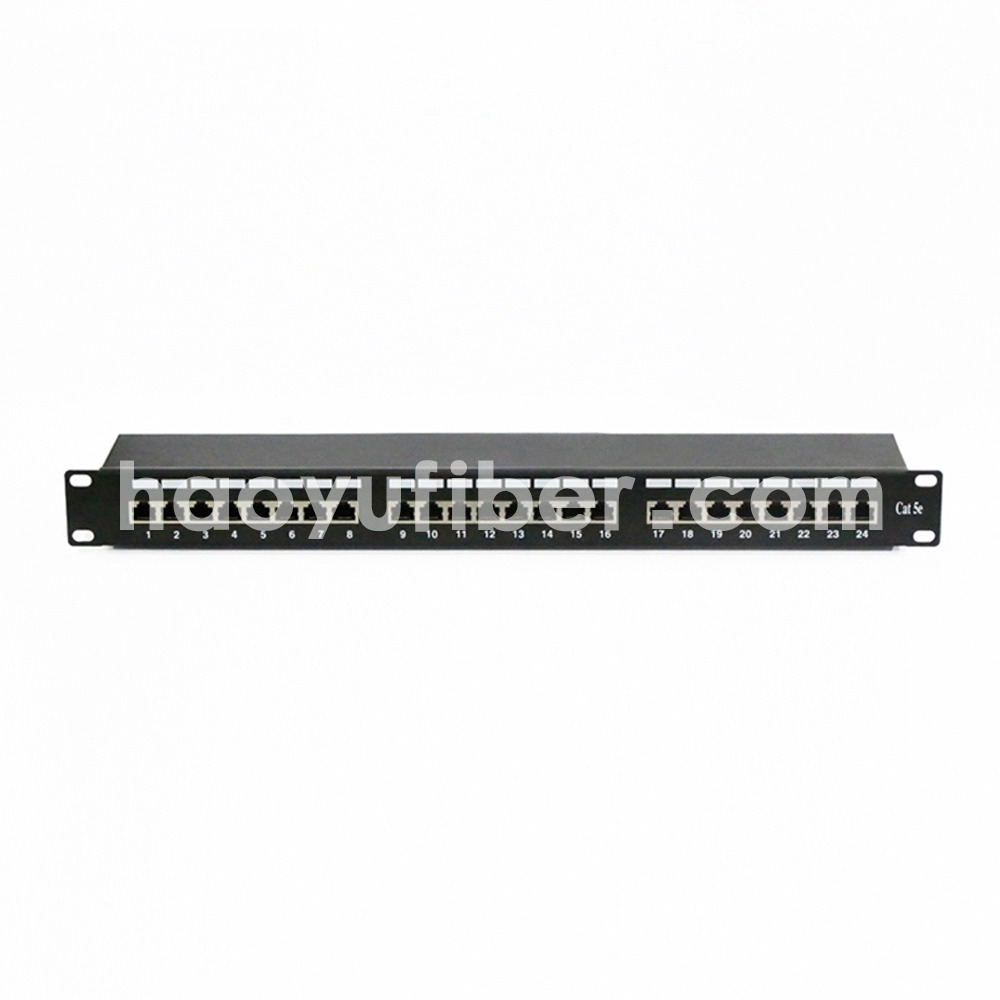

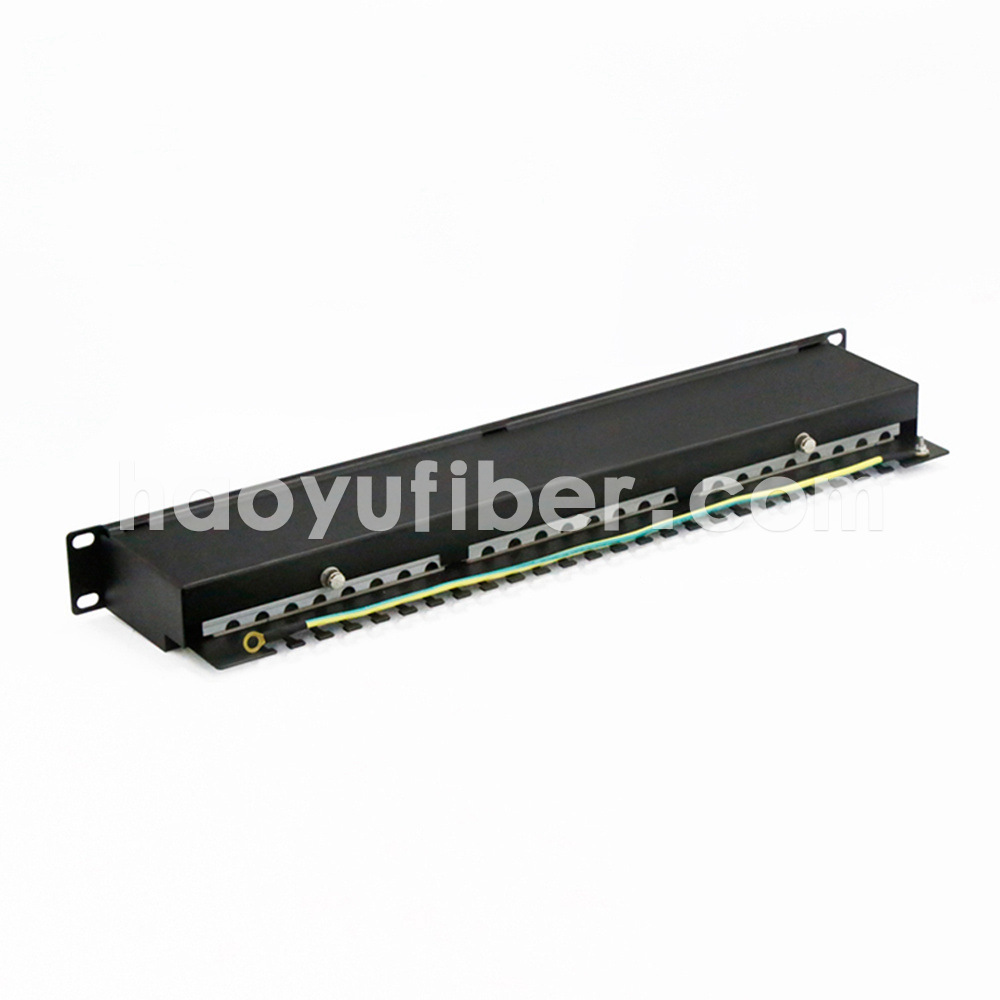

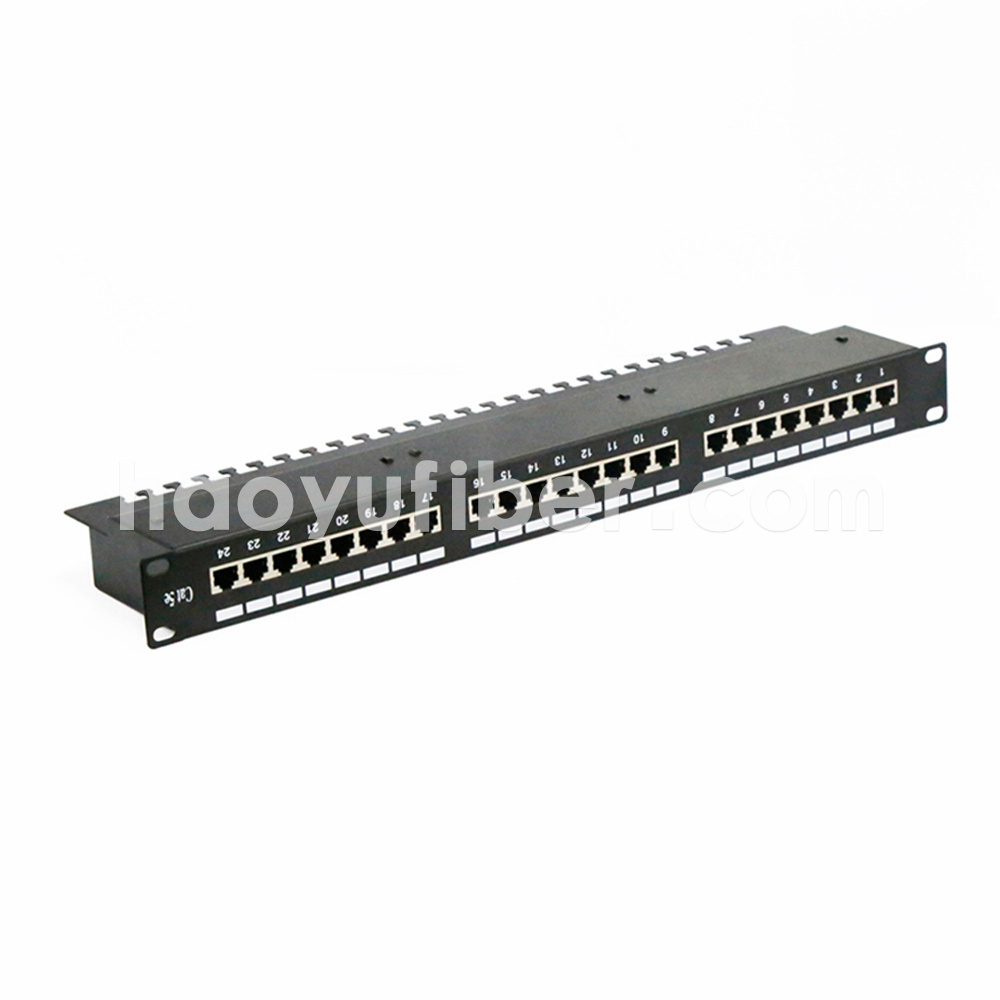

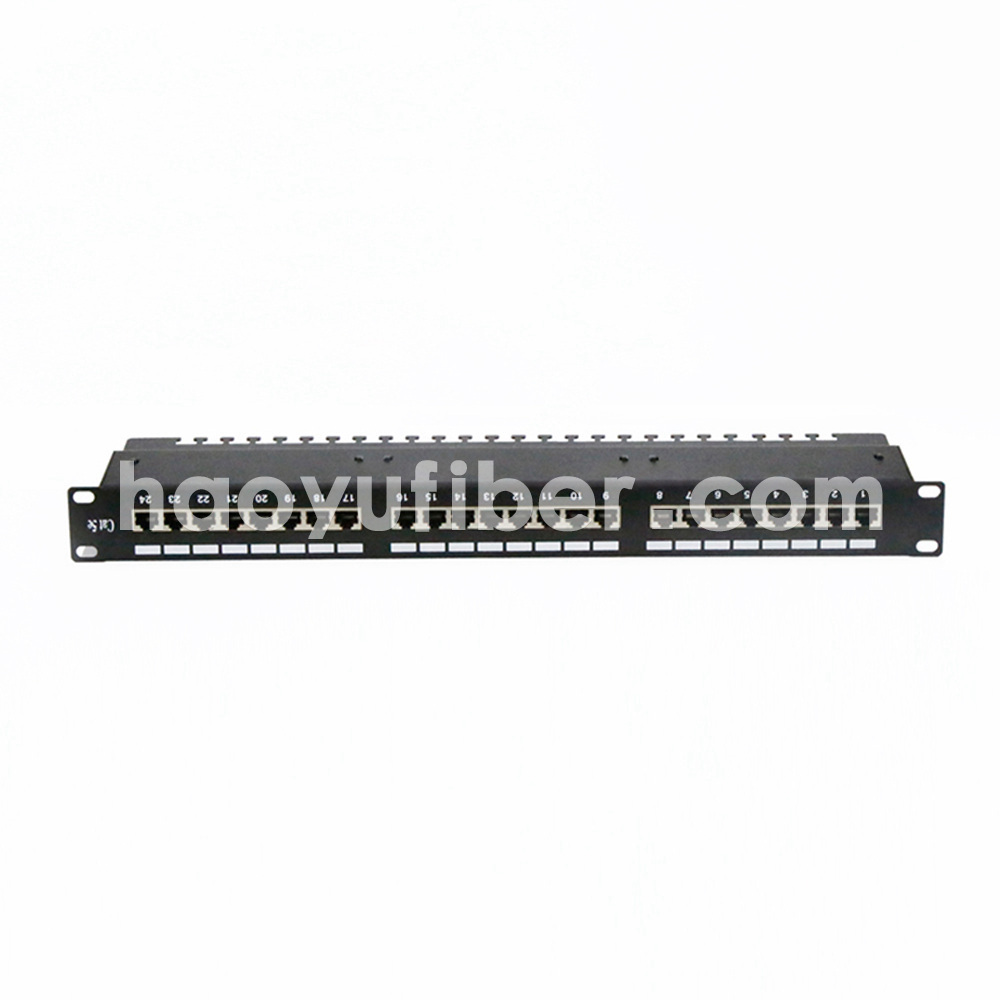

1U 24 Port CAT5E Shielded FTP Straight-through Copper Patch Panel
CAT5E super five type shielded copper patch panel provided by Haoyu is suitable for horizontal wiring between devices or equipment terminations, as well as the mutual matching terminations of centralized points.Rugged and easy to install design, reduce in.
Features
1U 24 Port CAT5E Shielded FTP Straight-through Copper Patch Panel
1.Standard 19-inch rack type, standard 1U height;
2.Comply with FCC/CE/ ROHS /UL;
3.Transmission performance meets ANSI/TIA 568C.2,1S0/EC11801, YD/T926,EN50173;
4.100% Fluke test.
Applications
The 1U 24 pot AT5E ultra five type shielding (FTP) through copper patch panel provided by Haoyu is 1000 BASE-T Gigabit Ethernet, 100 BASE-TX fast Ethernet, 10 BASE-T Ethernet Voice ,video and other application networks.
|
1U 24 Port CAT5E Shielded FTP Straight-through Copper Patch Panel |
|
|
Rated current |
1.5A |
|
Contact resistance |
Max 100mΩ(500VDC) |
|
Insulation resistance |
Min 1000MΩ |
|
Compressive strength |
750VAC(60Hz/min) |
|
Storage temperature |
-40°C to +70°C |
|
Operating temperature |
-20°C to +60°C |
|
IDC Shell material |
PBT |
|
Panel frame material |
SPCC,Black or industrial gray, electrostatic powder coating |
|
Plug service life |
≥750 Times |
|
IDC life |
≥200 Times |
|
Contact material |
Phosphor bronze, The thickness of the0.3mm |
|
IDC Contact material |
Phosphor bronze, Surface of nickel plating |
|
Number of rules |
23-24AWG |
