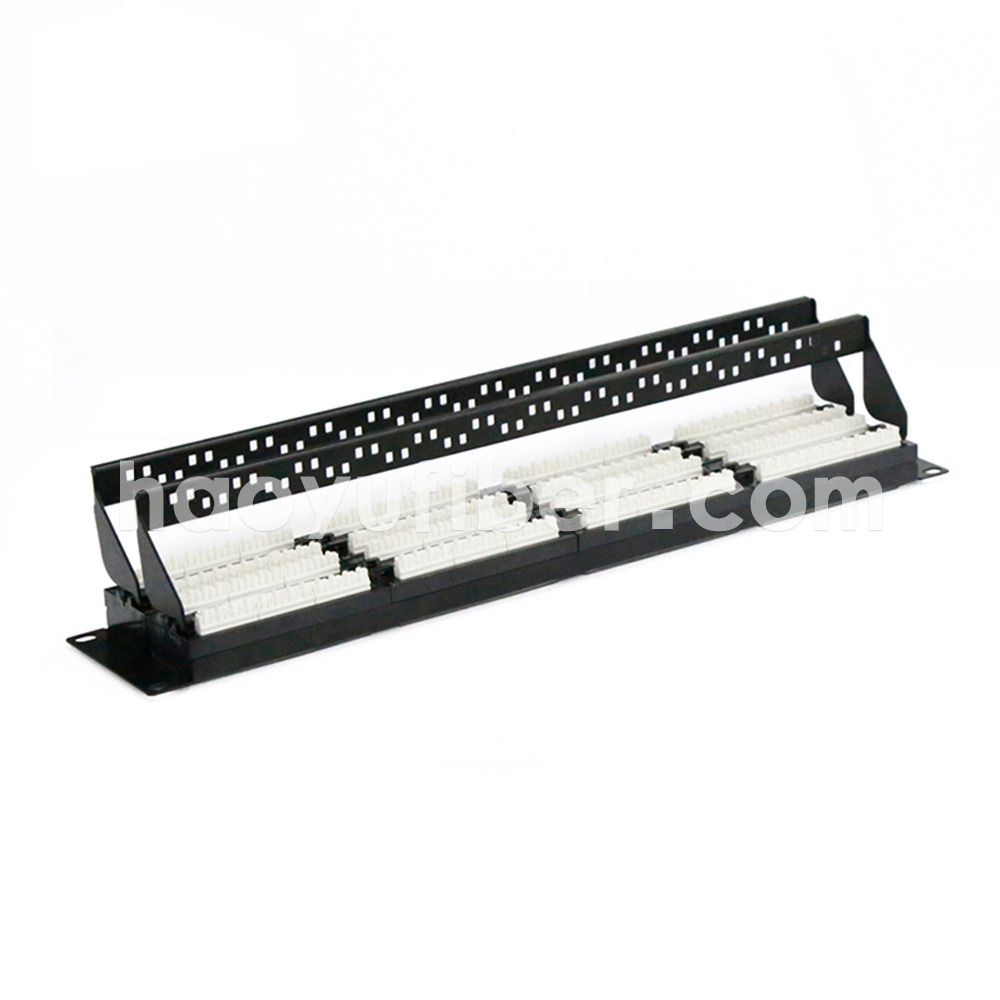

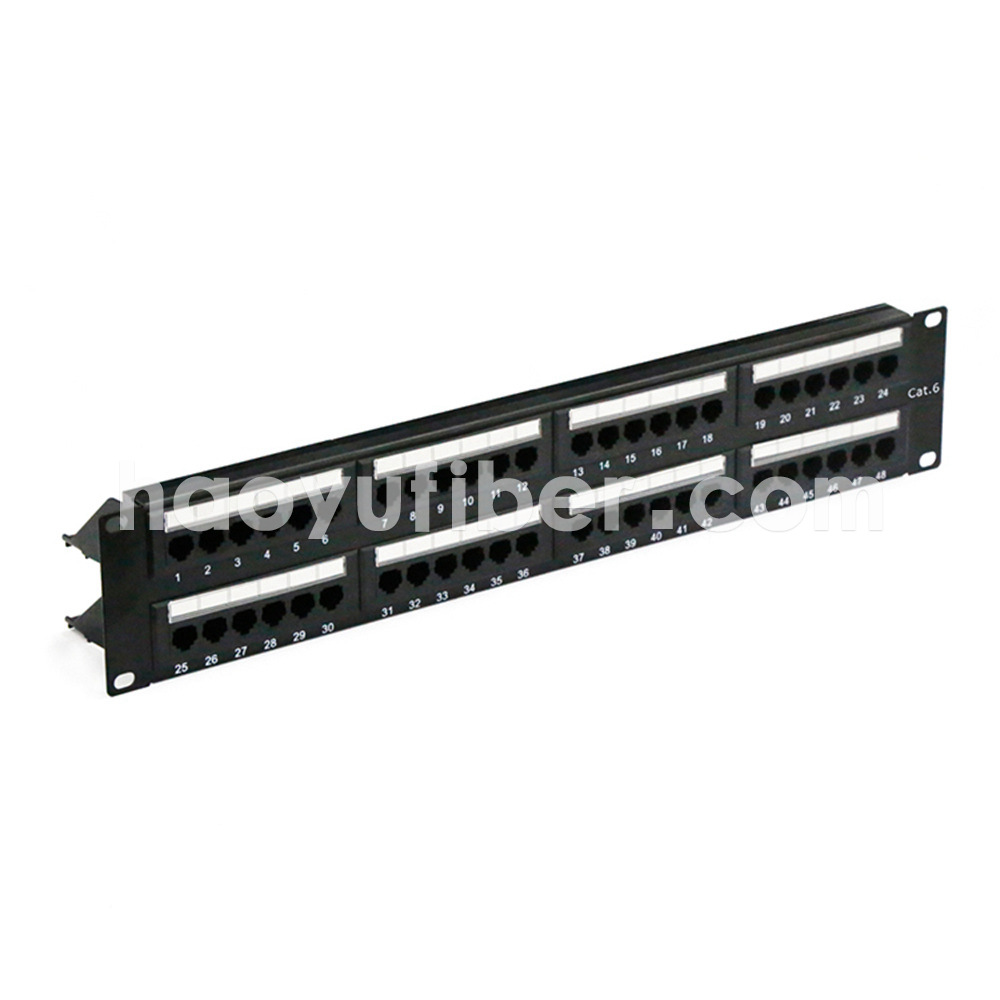

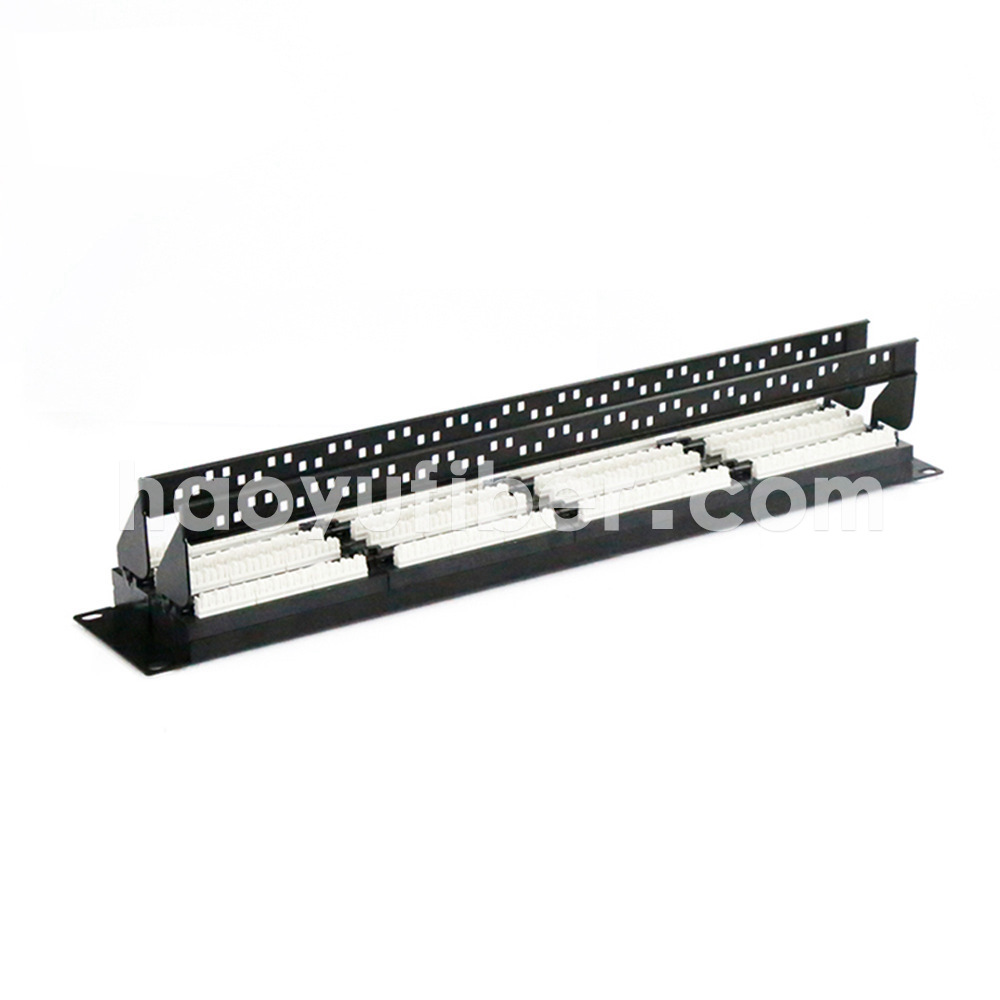

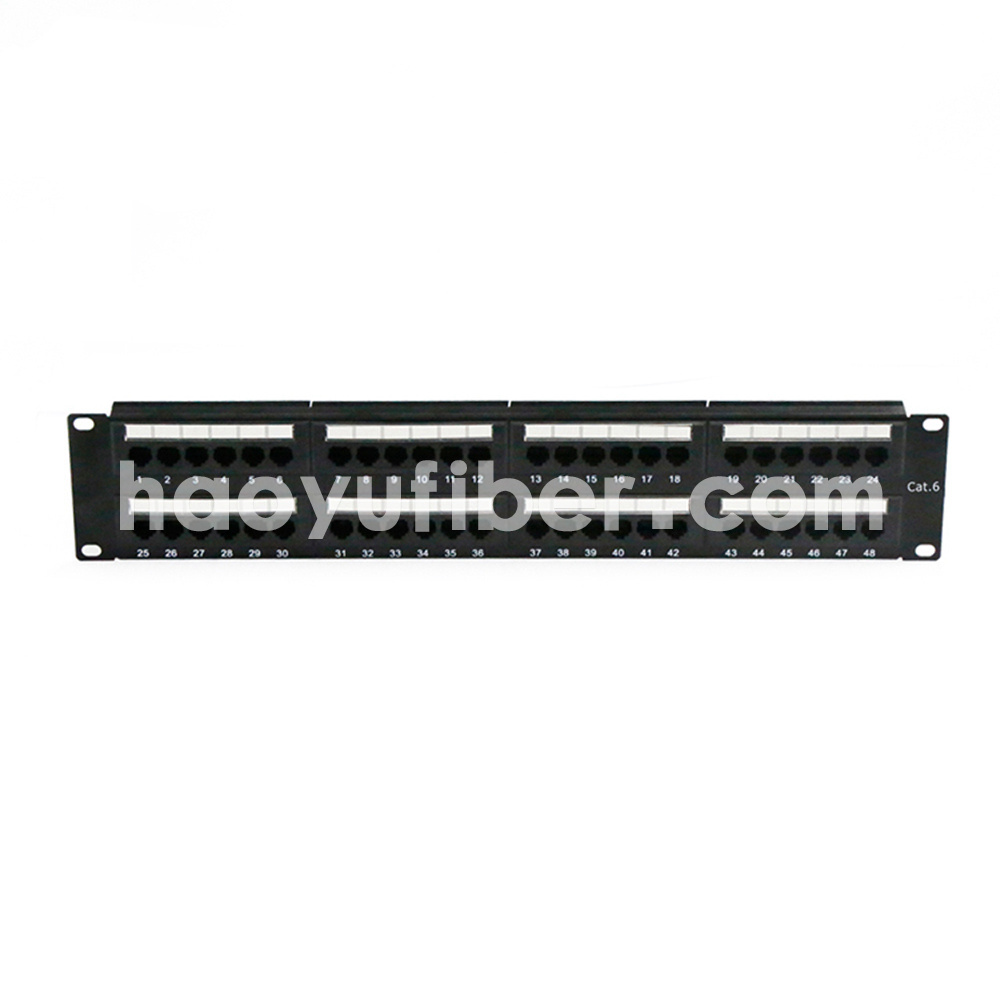

2U 48 Port CAT6 Unshielded UTp Network Patch Panel 110 Cologne Terminals
The 48 port CAT6 unshielded copper patch panel provided by Haoyu is used for end user lines or trunk lines and can be deployed to connect them.Distribution frame is the most important component in the management subsystem.
Features
1.Standard 19-inch rack type, standard 1U height, meet and exceed the relevant standards;
2.The wiring terminal of the distribution frame is Kelon and 110 dual terminal;
3.The terminals of the distribution frame are not integrated design and have stable performance,which can be used for quick wing without any module;
4.The whole distribution frame is metal structure, and the wiring terminals are equipped with a fully enclosed metal shielding layer;
5.The end of each shielded cable is equipped with all-metal cable clip to ensure the shielding and grounding performance of the cable;
6.The distribution frame has a single inch design, which ensures the shielding and grounding performance of the whole distribution frame.
Applications
The 48 port CAT6 non-shielded copper patch panel provided by Shenzhen Haoyu Telecommunication Co., Ltd. (Haoyu) is applied to the level of equipment or equipment terminating, as well as the mutual matching terminating of the centralized point.Sturdy and easy to install design, reduce installation and operation costs, large front identification space convenient port identification, easy to manage.
|
2U 48 Port CAT6 Unshielded UTP Network Patch Panel 110 Cologne Terminals |
|
|
Rated current |
1.5A |
|
Contact resistance |
Max 100mΩ(500VDC) |
|
Insulation resistance |
Min 1000MΩ |
|
Compressive strength |
750VAC(60Hz/min) |
|
Storage temperature |
-40℃ to +70℃ |
|
Operation temperature |
-20℃ to +60℃ |
|
IDC Shell material |
PBT |
|
Panel frame material |
SPCC,Black or industrial gray, electrostatic powder coating |
|
Plug service life |
≥750 Times |
|
IDC life |
≥200 Times |
|
Contact material |
Phosphor bronze，The thickness of the0.3mm |
|
IDC Contact material |
Phosphor bronze，Surface of nickel plating |
|
Number of rules |
23-24AWG |
