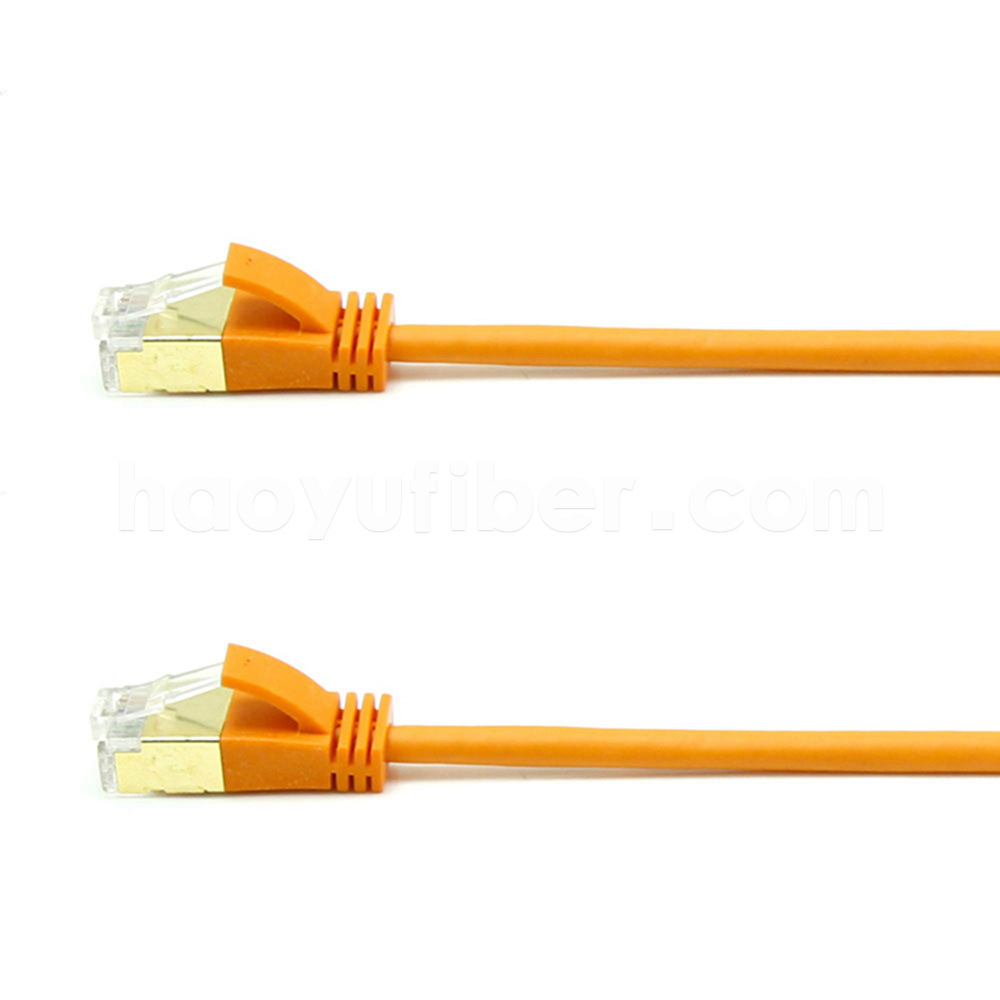

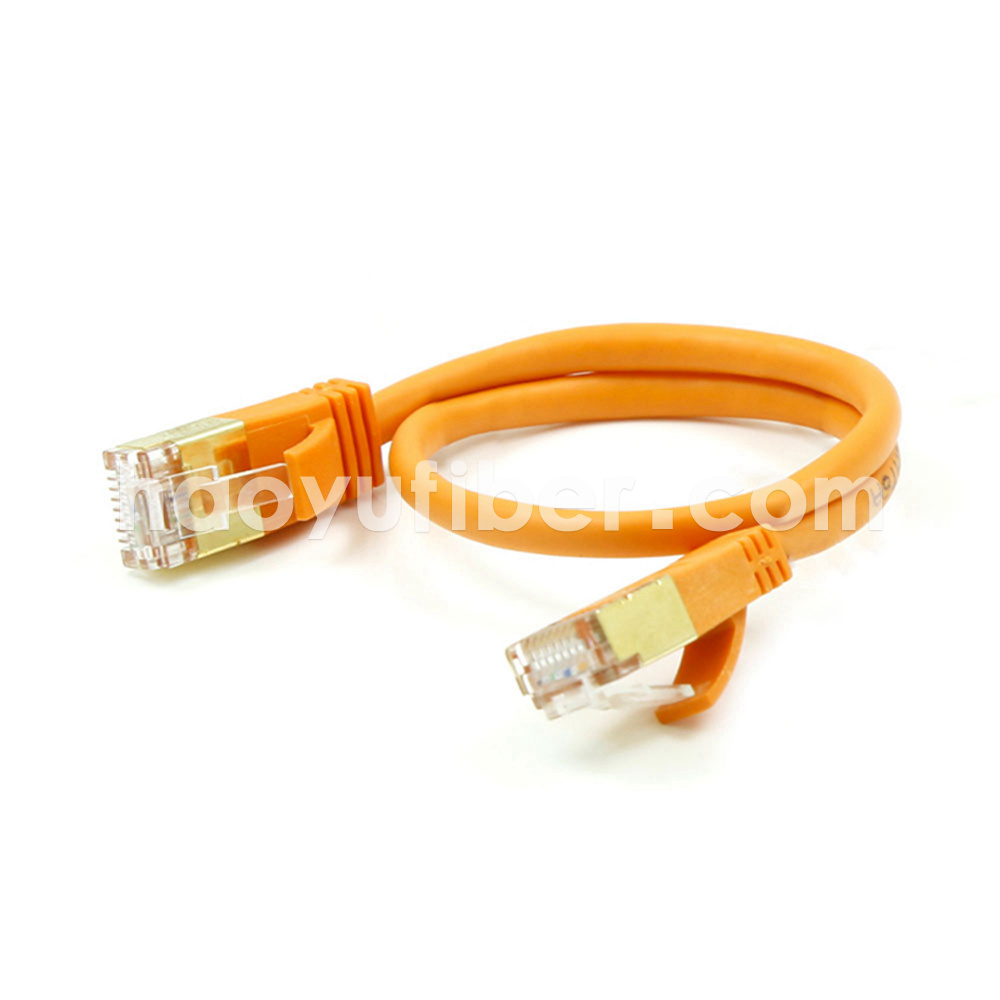

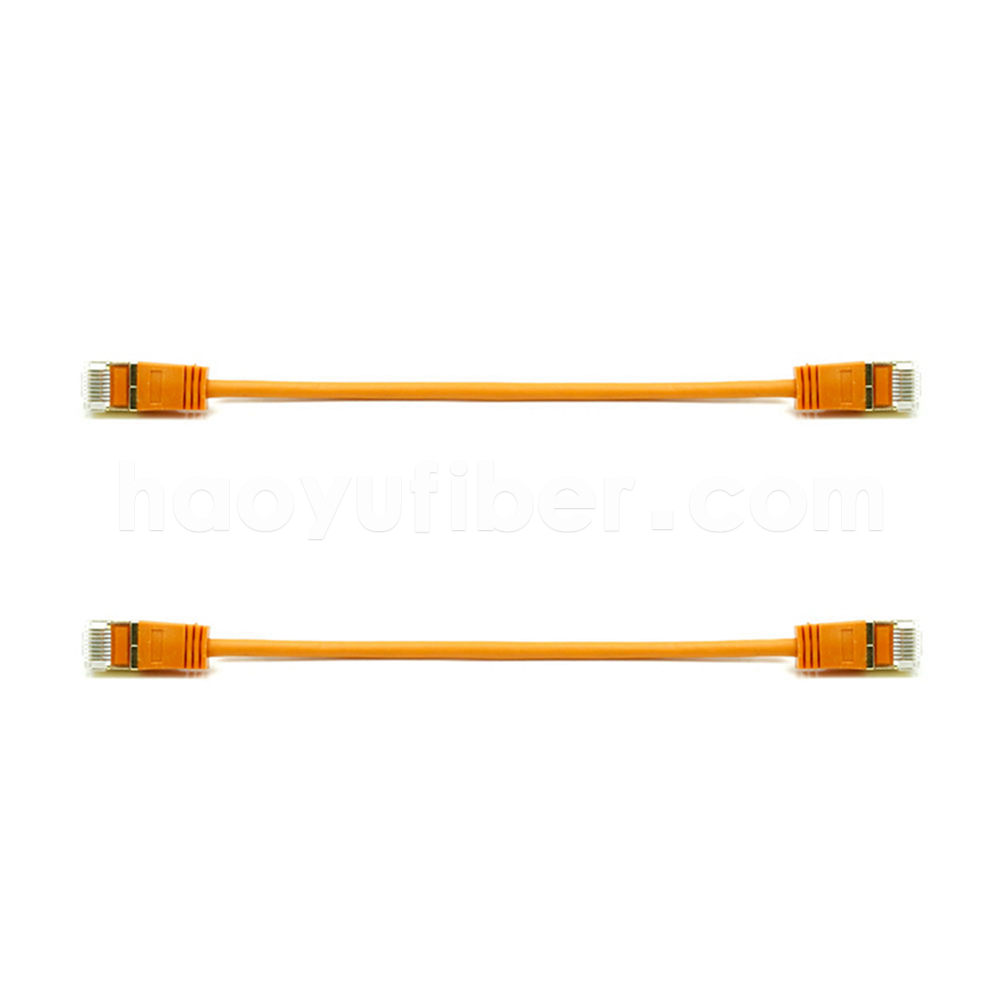

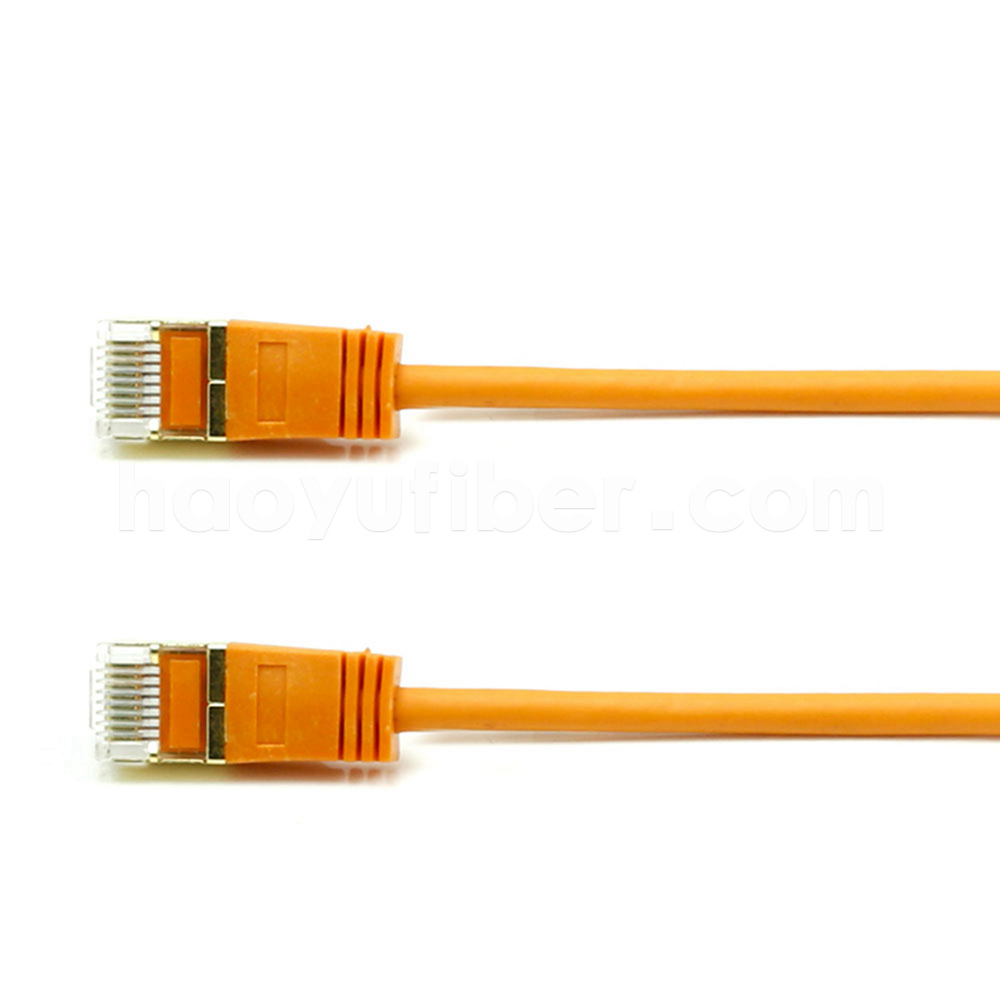

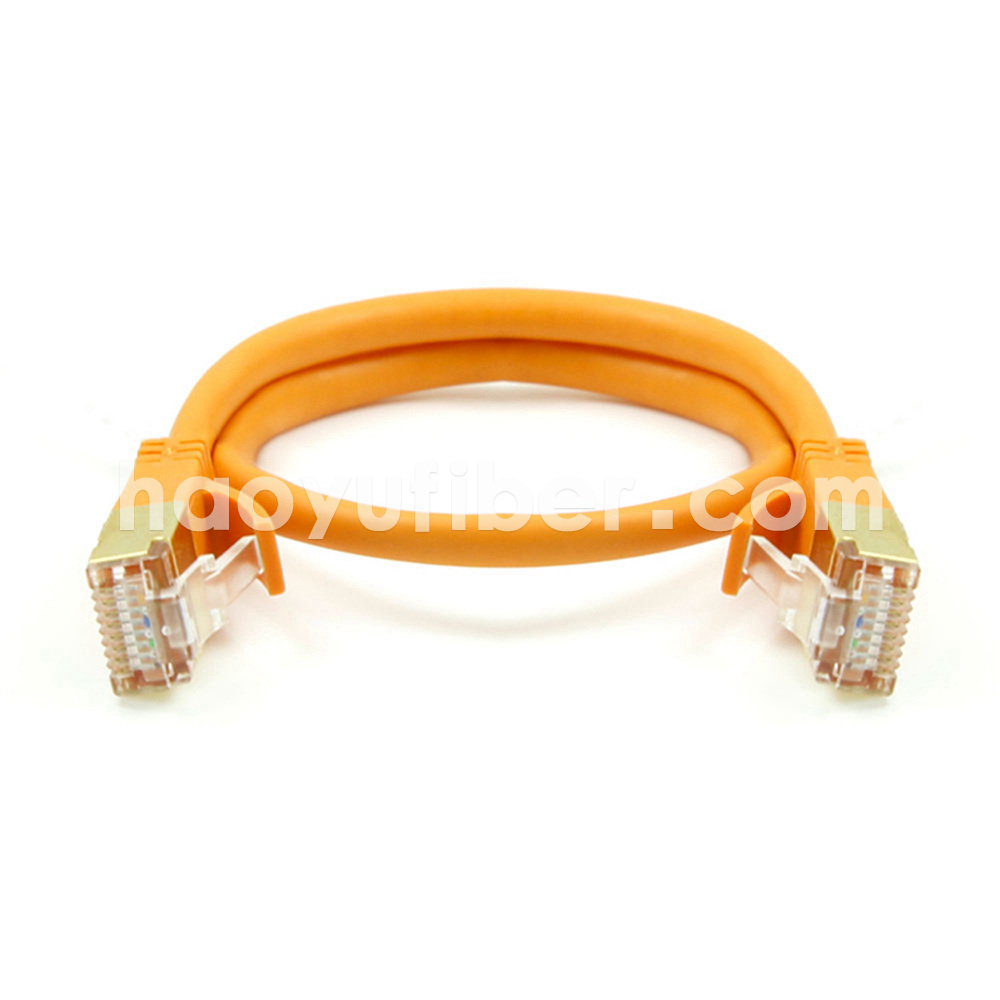

CAT6A Shielded SFTP Network Patch Cord 26AWG PVC
Haoyu shielded super six types of network patch cord using SFTP cable structure, plug and play, convenient and flexible, and the finished jumper test in strict accordance with ANSI/TIA/EIA-568C.2, so as to ensure the reliability of the transmission system.
Features
1. Support T568A(ISDN) and T568B (ALT) pin configuration
2. The surface of RJ45 crystal oboe is gold-plated, which ensures very good contact and signal transmission performance
3. Made by injection molding process, the wire is sealed and does not oxidize
4.100% factory test, can ensure the performance
Meet international standards ANSI/TIA/EIA-568B, IEC61156-5 5E and EN 50288-2-1 and TIA-568-C.2 and domestic standards YD/T1019-2013
Applications
The 26AWG CAT6A SFTP network patch cord yellow PVC outer sheath is widely used in data center, network cabinet, office connection network transmission equipment, such as POE switch, computer and so on.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT6A Shielded SFTP Network Patch Cord 26AWG PVC |
|
|
Connector Type |
RJ-45 |
|
Conductor |
26AWG,Oxygen-free pure copper wire |
|
Electrical Characteristics |
1. Maximum conductor resistance@20°C：66Ω/km； 2. Maximum unbalance resistance@20°C：2.5%； 3. Mutual capacitance：5.6nF/100m； 4. Characteristic impedance：100±15%Ω（1 到 100MHZ）； 5. Band width：100MHz. |
|
Outer Skin Material Options |
PVC、LSZH |
|
Operating Temperature |
- 20°C 至 + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 The requirements for the super five categories |
|
Copper Cable Outer Diameter |
5.8 ± 0.3mm |
