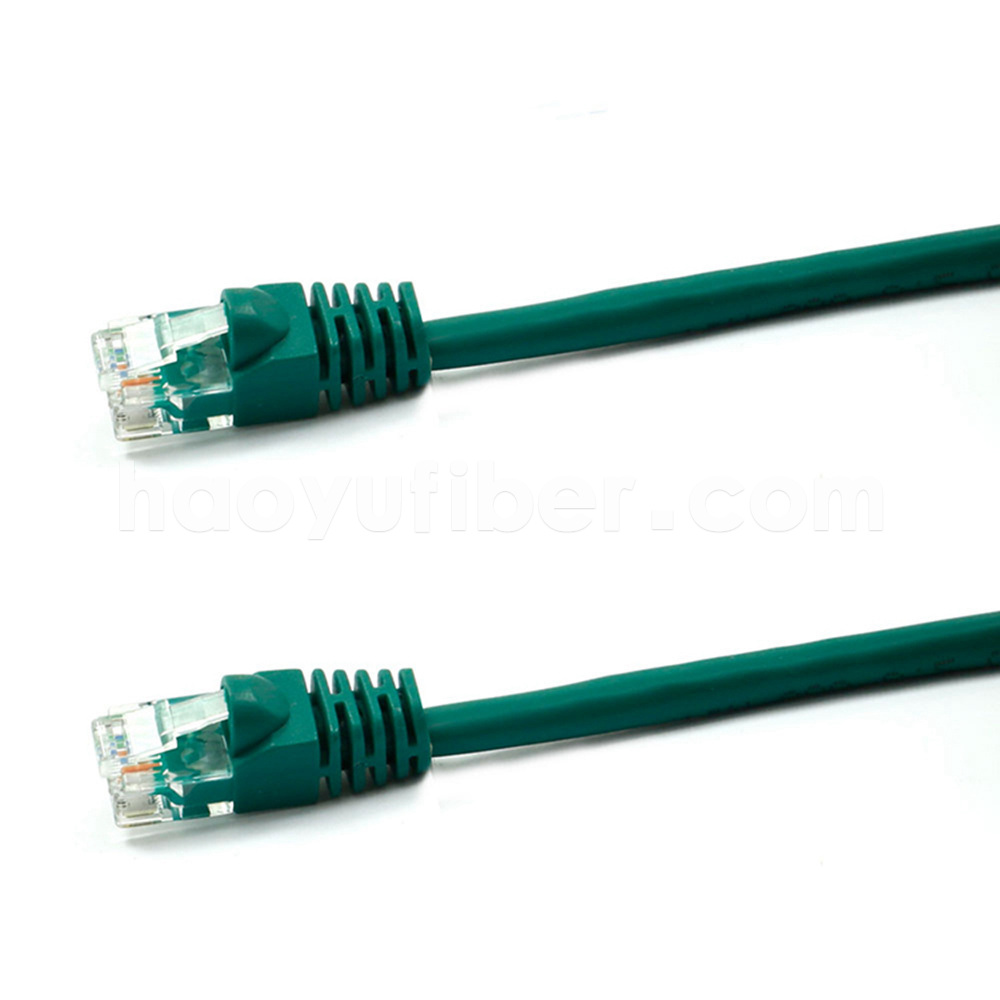

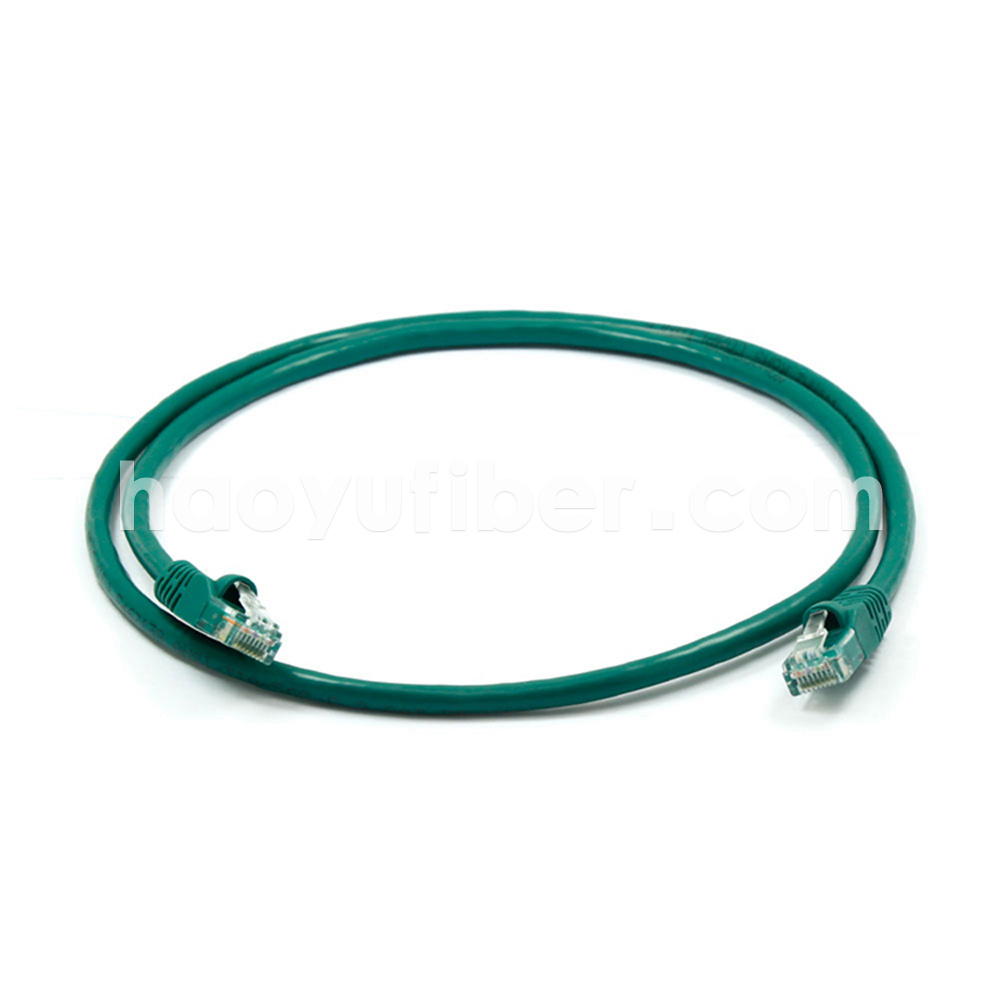

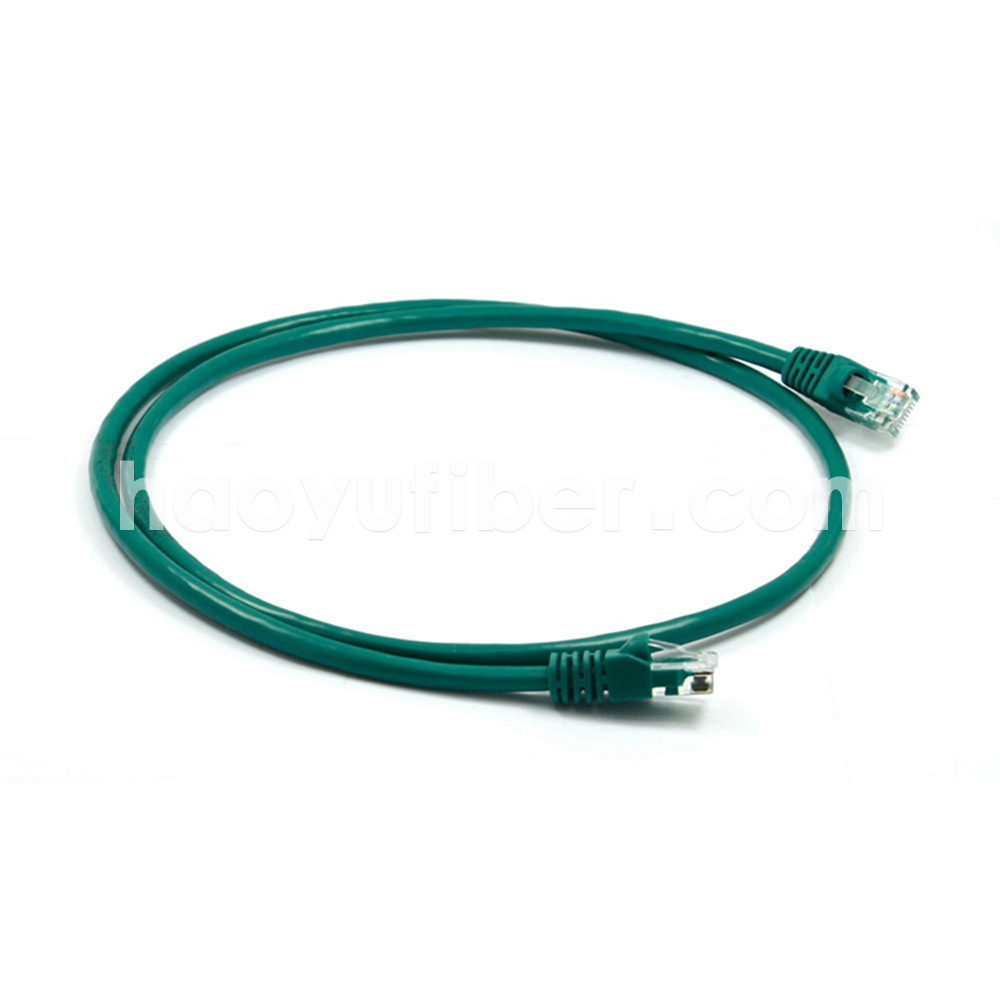

CAT6A Unshielded UTP Network Patch Cord 24AWG PVC/LSZH
Haoyu provides CAT6 unshielded (UTP) network patch cable green with UTP cable structure, plug-and-play, convenient and flexible, and the finished patch cable is tested in strict accordance with ANSI/TIA/EIA-568C.2, thus ensuring the reliability of system.
Features
1. Support T568A(ISDN) and T568B (ALT) pin configuration;
2. RJ45 crystal oboe surface gold plated, to ensure very good contact and signal transmission performance;
3. Made by injection molding process, the wire is sealed and does not oxidize;
4. 100% factory test, can ensure the performance;
5. Meet the international standard ANSI/TIA/EIA-568B, IEC61156-5 5E and EN 50288-2-1 and TIA-568-C.2 and domestic standard YD/T1019-2013.
Applications
CAT6A UTP network patch cord 24AWG green PVC/LSZH is widely used in data center, network cabinet, office connection network transmission equipment, such as POE switch, computer and so on.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT6A Unshielded UTP Network Patch Cord 24AWG PVC/LSZH |
|
|
Connector Type |
RJ-45 |
|
Conductor |
26AWG,Oxygen-free pure copper wire |
|
Electrical Characteristics |
1. Maximum conductor resistance@20°C：66Ω/km； 2. Maximum unbalance resistance@20°C：2.5%； 3. Mutual capacitance：5.6nF/100m； 4. Characteristic impedance：100±15%Ω（1 到 100MHZ）； 5. Band width：100MHz.
|
|
Outer Skin Material Options |
PVC、LSZH |
|
Operating Temperature |
- 20°C 至 + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 The requirements for the super five categories |
|
Copper Cable Outer Diameter |
5.8 ± 0.3mm |
