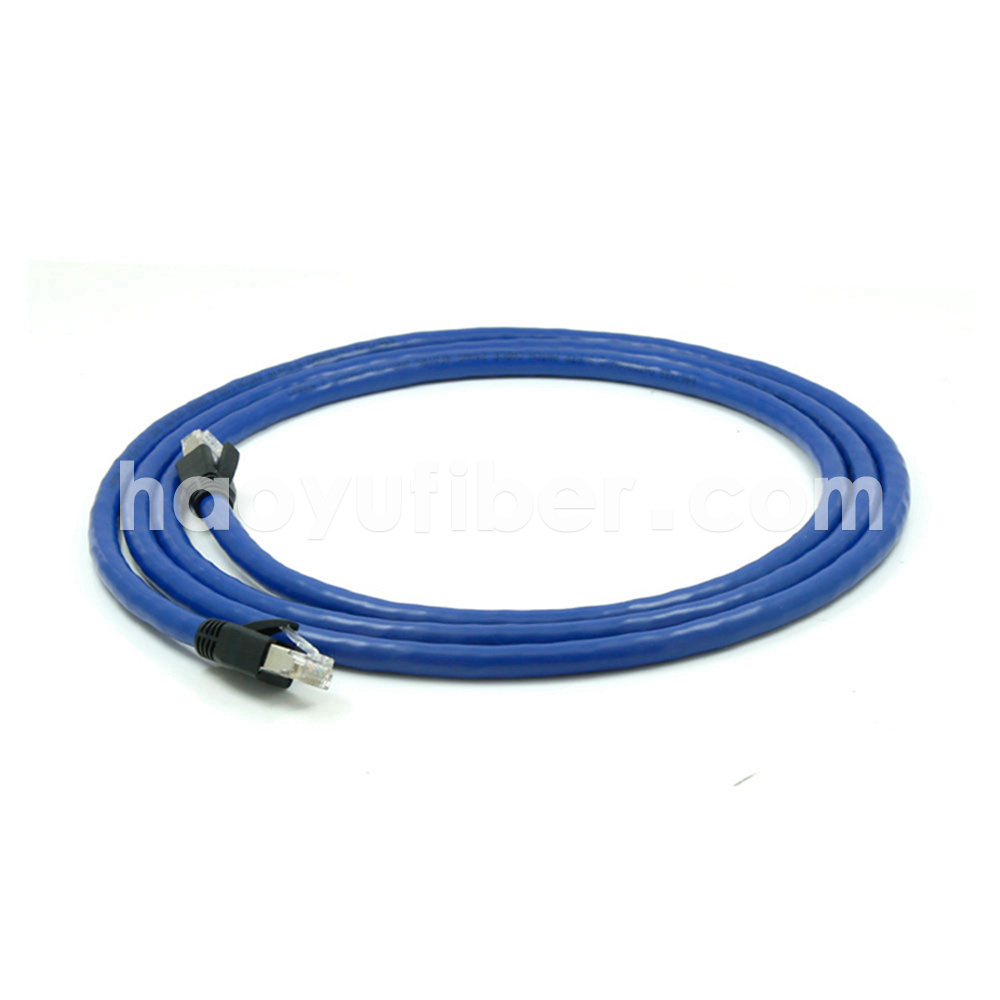

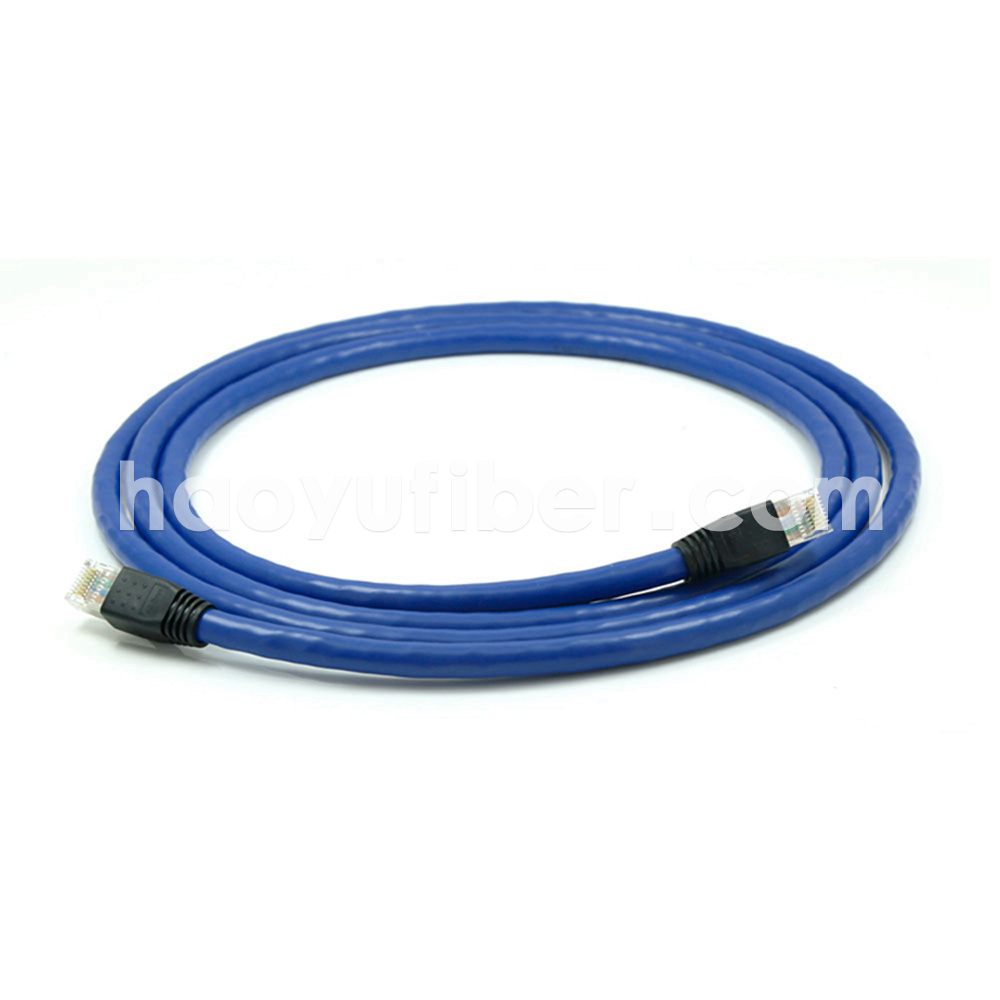

CAT8 Shielded UTP Network Patch Cord 2000MHz
Features
1. Support T568A(ISDN) and T568B (ALT) pin configuration;
2. RJ45 crystal oboe surface gold plated, to ensure very good contact and signal transmission performance;
3. Made by injection molding process, the wire is sealed and does not oxidize;
4. 100% factory test, can ensure the performance;
5. Meet the international standard ANSI/TIA/EIA-568B, IEC61156-5 5E and EN 50288-2-1 and TIA-568-C.2 and domestic standard YD/T1019-2013.
Applications
Shenzhen Haoyu Telecommunication Co., Ltd. specializes in the development and production of 1M CAT8 shielded (SFTP) network patch cord 2000MHz/40G network cable blue PVC/LSZH widely used in data center, network cabinet, office connection network transmission equipment, such as POE switches, computers and so on.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT8 Shielded UTP Network Patch Cord 2000MHz/40G PVC/LSZH 24AWG |
|
|
Connector Type |
RJ-45 |
|
Conductor |
26AWG,Oxygen-free pure copper wire |
|
Electrical Characteristics |
1. Maximum conductor resistance@20°C：66Ω/km； 2. Maximum unbalance resistance@20°C：2.5%； 3. Mutual capacitance：5.6nF/100m； 4. Characteristic impedance：100±15%Ω（1 到 100MHZ）； 5. Band width：100MHz.
|
|
Outer Skin Material Options |
PVC、LSZH |
|
Operating Temperature |
- 20°C to + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 The requirements for the super five categories |
|
Copper Cable Outer Diameter |
5.8 ± 0.3mm |
