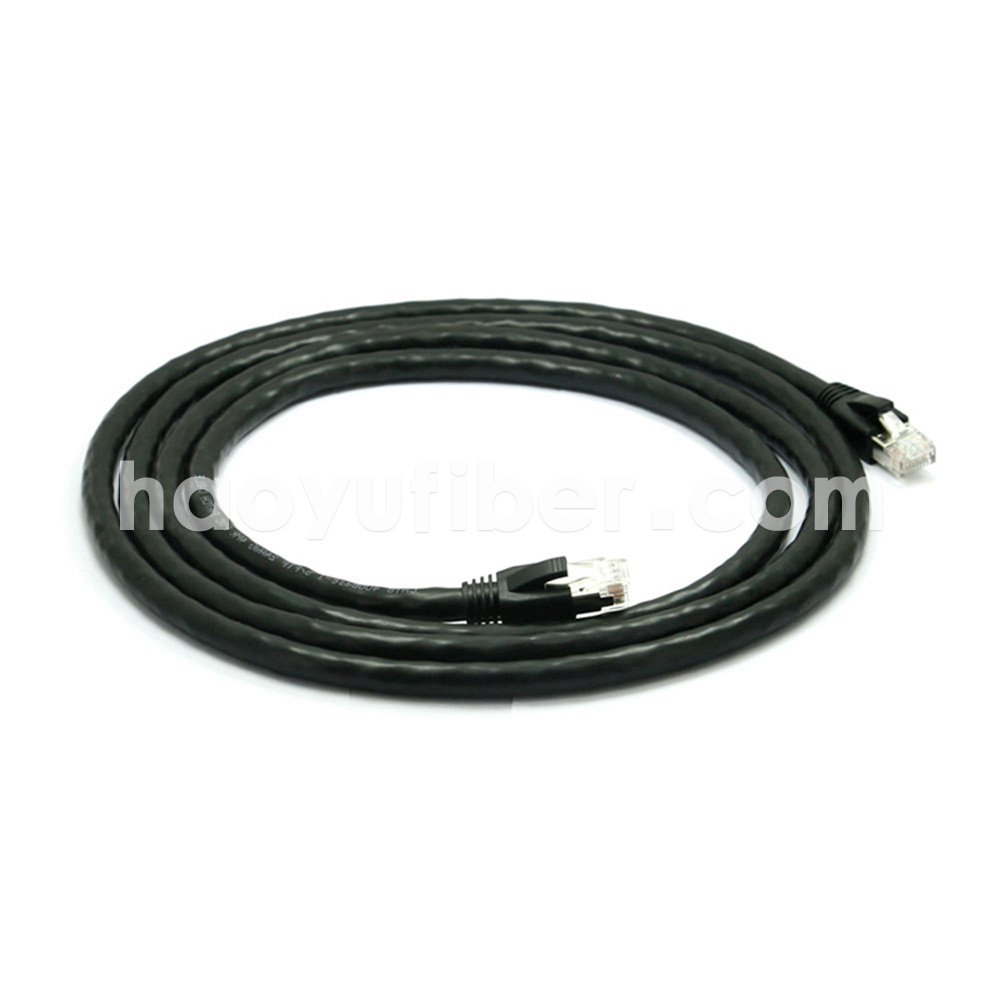

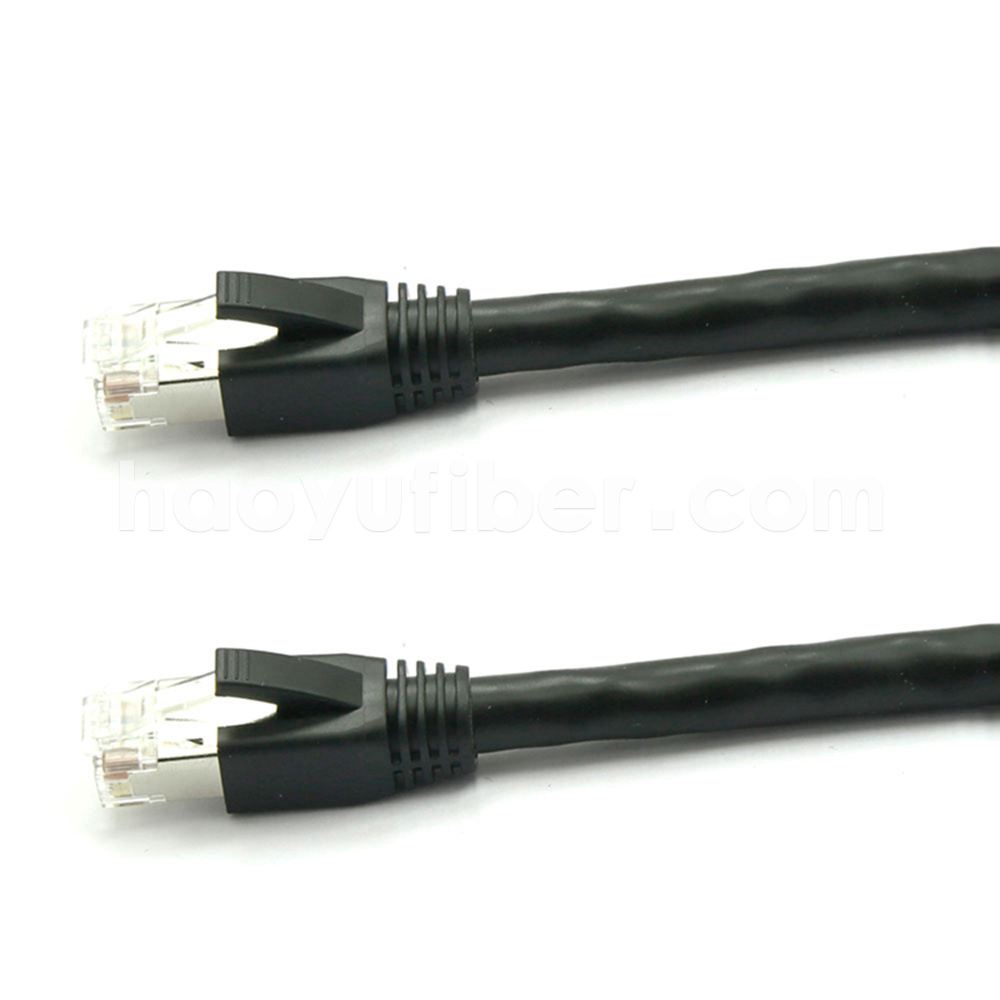

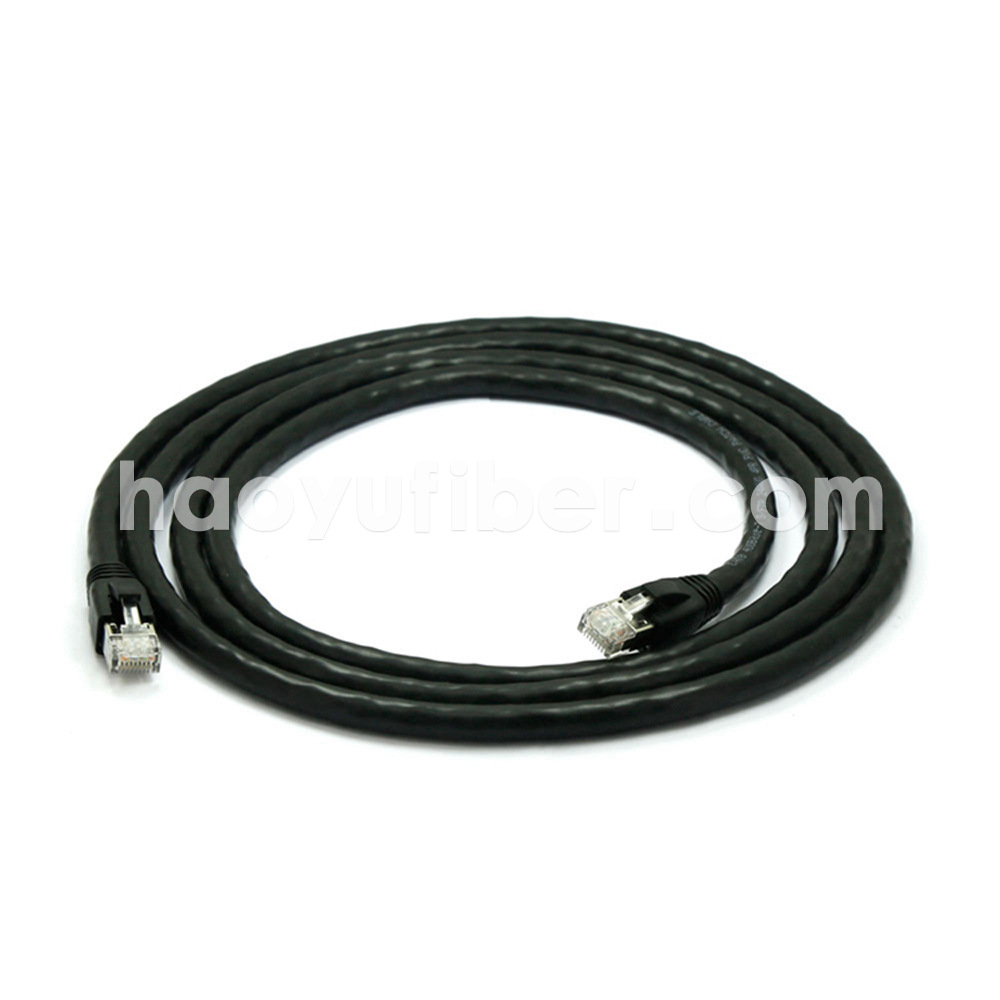

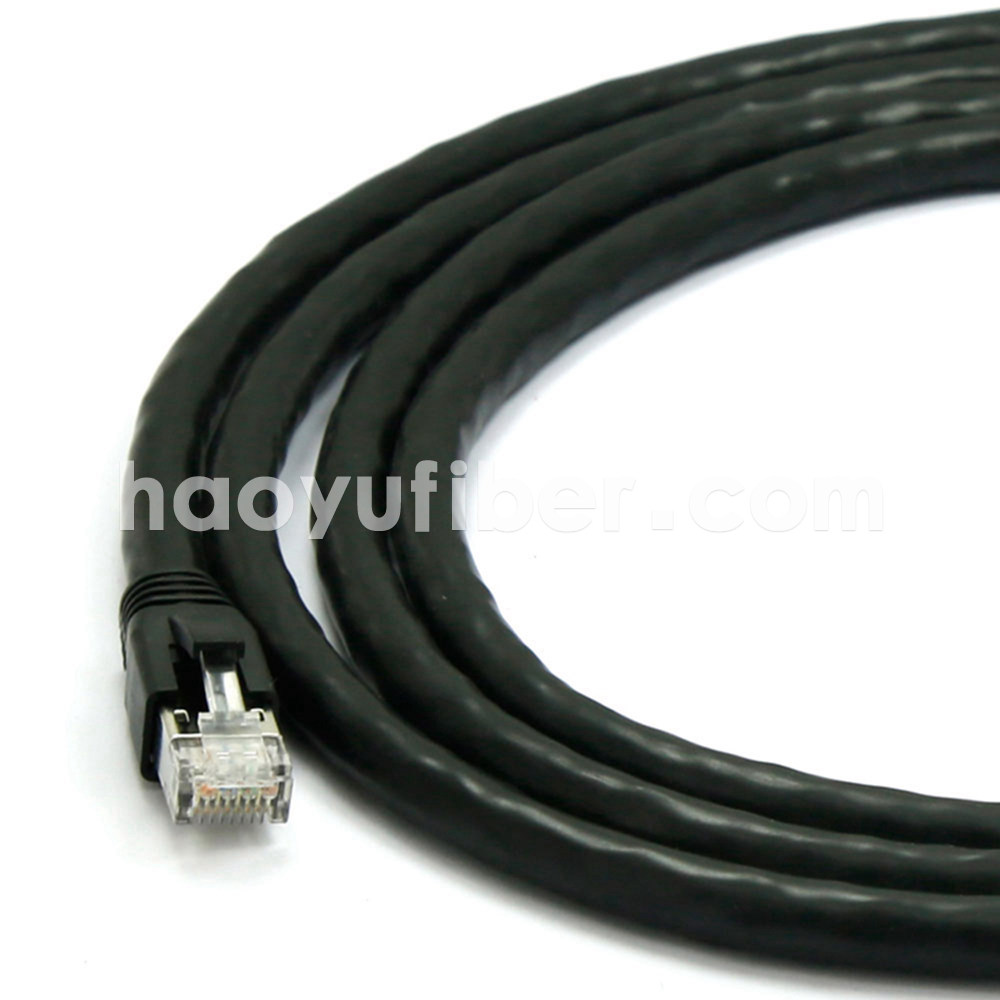

CAT8 Shielded UTP Network Patch Cord 26AGW PVC
Haoyu shielding eight types of network patch cord using SFTP cable structure, plug and play, convenient and flexible, and the finished jumper test in strict accordance with ANSI/TIA/EIA-568C.2, so as to ensure the reliability of the transmission system.
Features
1. Support the configuration of T568A(ISDN) and T568B (ALT) pins;
2. The surface of RJ45 crystal oboe is gold-plated, which ensures very good contact and signal transmission performance;
3. Made by injection molding process, the wire is sealed and does not oxidize;
4. 100% factory test, can ensure the performance Meet international standards ANSI/TIA/EIA-568B, IEC61156-5 5E and EN 50288-2-1 and TIA-568-C.2 and domestic standards YD/T1019-2013.
Applications
The 1M CAT8 double shielding (SFTP) network patch cord 24AGW black PVC outer sheath is widely used in data center, network cabinet, office connection network transmission equipment, such as POE switch, computer and so on.It is the best choice for designing, deploying, and maintaining an efficient and flexible data environment.
|
CAT8 Shielded UTP Network Patch Cord 26AGW PVC |
|
|
Connector Type |
RJ-45 |
|
Conductor |
26AWG,Oxygen-free pure copper wire |
|
Electrical Characteristics |
1. Maximum conductor resistance@20°C：66Ω/km； 2. Maximum unbalance resistance@20°C：2.5%； 3. Mutual capacitance：5.6nF/100m； 4. Characteristic impedance：100±15%Ω（1 到 100MHZ）； 5. Band width：100MHz.
|
|
Outer Skin Material Options |
PVC、LSZH |
|
Operating Temperature |
- 20°C to + 60°C（-4~140℉） |
|
Safety Standards |
RoHS，ISO/IEC11801 The requirements for the super five categories |
|
Copper Cable Outer Diameter |
5.8 ± 0.3mm |
